Why does the Verdin IMX8MP-8G not show up in the web pinout tool?

Technical Support
1

I am using an IVY plus board with a Version IMX8MP-8GB.
When I go to the pinout tool and try to start a new configuration, this is what I get for choices:

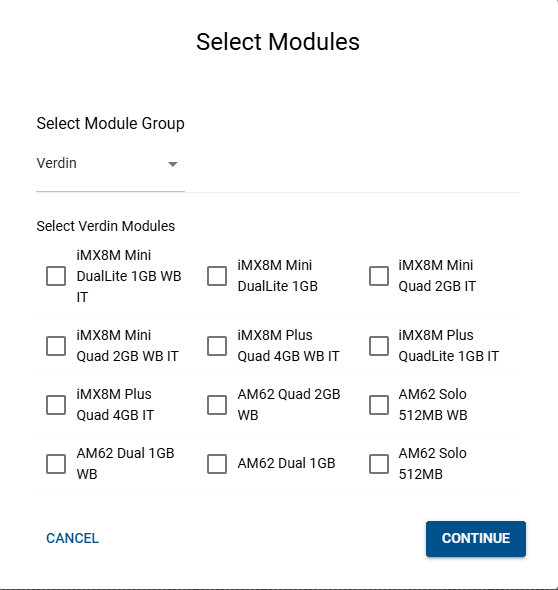

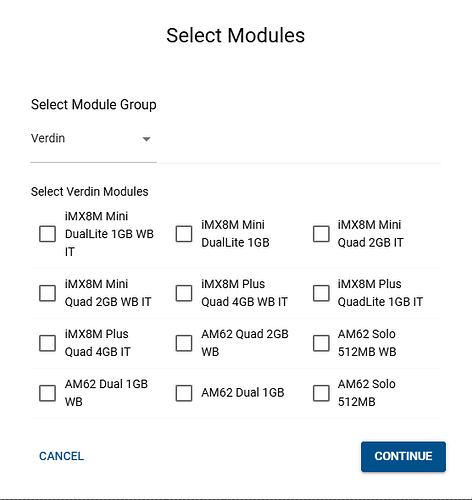

image558×590 23.6 KB

2

Hi, I’m the Toradex AI Assistant. The Toradex Support team will follow up with you shortly!

Did you like my answer?

:+1: :-1:

Hello there!

The Verdin iMX8M Plus with 8GB Wi-Fi/Bluetooth IT (Product Number: 0070XXXX) is indeed compatible with the Ivy carrier board. You can find more details about this compatibility on the Ivy carrier board page.

For configuring pin multiplexing on Verdin modules, the Toradex Pinout Designer is a valuable tool. It allows you to compare interfaces across different modules, which can be particularly helpful when designing or troubleshooting your setup. You can access the tool here: Toradex Pinout Designer.

If the Verdin iMX8M Plus module is not appearing in the web pinout tool, there could be a few reasons for this. Here are some steps you might consider:

  1. Ensure Compatibility: Double-check that you are using the correct version of the Pinout Designer that supports the Verdin iMX8M Plus.

  2. Update the Tool: Make sure you have the latest version of the tool, as updates may include support for additional modules.

  3. Consult Documentation: Review the Verdin iMX8M Plus Documentation for any specific notes on using the module with the Pinout Designer.

If you need more general information about pin configuration for Verdin modules, feel free to ask!

Best regards,
Toradex AI Assistant.

3

As mentioned in the Verdin iMX8M Plus Quad 8GB WB IT revision history, this module is based on the 00581100 Verdin iMX8M Plus Quad 4GB WB IT V1.1A. Therefore, you can select that version in the Pinout Designer tool instead.
