Verdin iMX8M Plus V1.1 A Bluetooth HW config

Technical Support
, ,
1

Hi,

Question regarding Pin 104 on the Verdin iMX8M Plus V1.1A module;
To enable SDIO support for Bluetooth we need to actively pull-up this Pin 104 (MSP_8) to 1V8 but the datasheet only mention pull-down option.

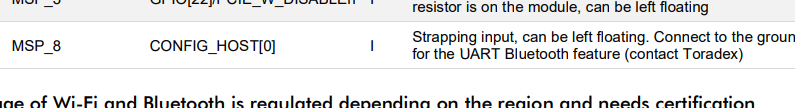

image795×109 24.2 KB

When Pin 104 is floating, the SDIO Bluetooth option is not recognized. Is that a correct behavior? Is it allowed to attach an external pull up?

Best regards

2

Hi @reia ,

As I see this question got solved by mail. We’ll add that information to the documentation.

Best Regards
Kevin
