USB device not found in recovery mode

Technical Support
, , , ,
1

Hi Toradex

I try to load the latest Easy Installer 2.0b5 onto a iMX6S module.
I enter the bootloader on the module and activate the USB boot mode.

I than connect the USB Client (OTG) on the Evaluation board to my PC.
But it cant find the USB device. I have a “Unknown Device (Device Descriptor Request Failed)”
I have tried on two PC’s. Same result,

I there a missing driver?

Thomas

2

Could you please specify which carrier board do you have and OS type and version you run on your desktop?

3

Hi

Im using Colibri Evalution Board, the latest version.
I’m running Windows 10, build 17763

Thomas

4

Hi

Thanks for this Information. Could you run the recovery-windows.bat and share the output in text format.

Thanks and best regards,
Jaski

5

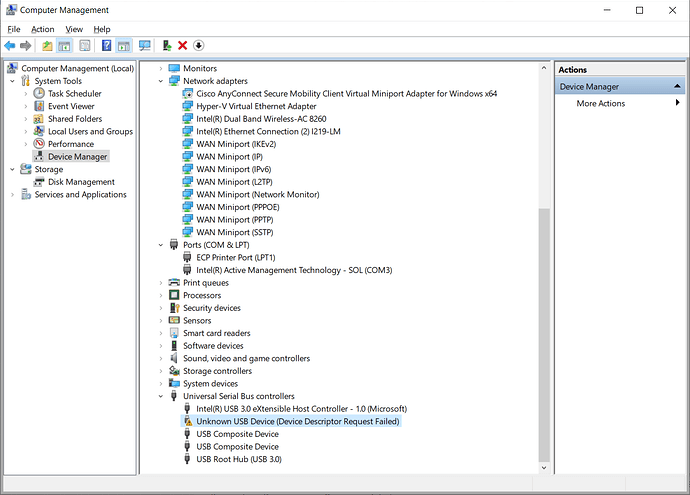

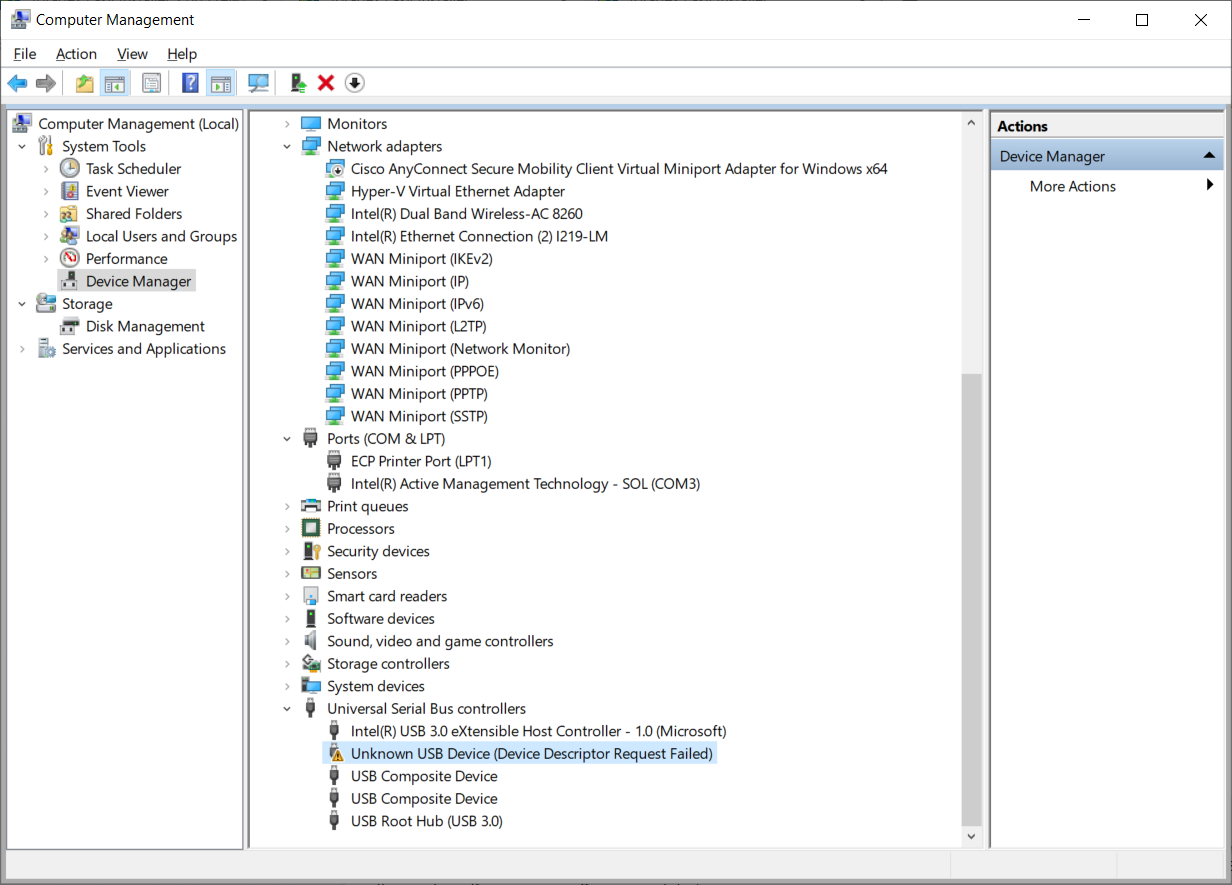

2250-unknown-usb.png1232×885 189 KB

6

Hi,

Here are the logs from recovery-windows.bat and the bootloader when starting “bmode usb”
Adding files semas not to work

Bootloader:

Commercial temperature grade DDR3 timings, 32bit bus width.
Trying to boot from MMC1

U-Boot 2016.11-1.1.0+g51b53b4 (Sep 06 2017 - 15:18:21 -0700)

CPU:   Freescale i.MX6SOLO rev1.1 at 792 MHz
Reset cause: POR
I2C:   ready
DRAM:  256 MiB
PMIC:  device id: 0x10, revision id: 0x21, programmed
MMC:   FSL_SDHC: 0, FSL_SDHC: 1
Using default environment

In:    serial_mxc
Out:   serial_mxc
Err:   serial_mxc
Model: Toradex Colibri iMX6 Solo 256MB V1.1A, Serial# 05127328
Net:   using PHY at 0
FEC [PRIME]
Hit any key to stop autoboot:  0
Colibri iMX6 #

**Recovery bat:**

Downloading Toradex Easy Installer...
config file
vid=0x15a2 pid=0x0054 file_name=mx6_usb_rom.conf
-> vid=0x1b67 pid=0x4fff file_name=mx6_usb_sdp_spl.conf
-> vid=0x1b67 pid=0x4000 file_name=mx6_usb_sdp_uboot.conf
vid=0x15a2 pid=0x0061 file_name=mx6_usb_rom.conf
-> vid=0x1b67 pid=0x4fff file_name=mx6_usb_sdp_spl.conf
-> vid=0x1b67 pid=0x4000 file_name=mx6_usb_sdp_uboot.conf
vid=0x15a2 pid=0x0076 file_name=mx7_usb_rom.conf
-> vid=0x1b67 pid=0x4000 file_name=mx7_usb_sdp_uboot.conf
vid=0x15a2 pid=0x0080 file_name=mx6ull_usb_rom.conf
-> vid=0x1b67 pid=0x4000 file_name=mx6ull_usb_sdp_uboot.conf
config file
parse recovery\\\mx6_usb_rom.conf
Trying to open device vid=0x15a2 pid=0x0061
Interface 0 claimed
HAB security state: development mode (0x56787856)
== work item
filename SPL
load_size 0 bytes
load_addr 0x13f00000
dcd 0
clear_dcd 0
plug 0
jump_mode 2
jump_addr 0x00000000
== end work item

loading binary file(SPL) to 00907400, skip=0, fsize=bc00 type=aa

<<<48128, 48128 bytes>>>
succeeded (status 0x88888888)
jumping to 0x00907400
config file
parse recovery\\\mx6_usb_sdp_spl.conf
Trying to open device vid=0x1b67 pid=0x4fff
Interface 0 claimed
HAB security state: development mode (0x56787856)
== work item
filename u-boot.img
load_size 0 bytes
load_addr 0x03f00001
dcd 0
clear_dcd 0
plug 0
jump_mode 2
jump_addr 0x00000000
== end work item

loading binary file(u-boot.img) to 177fffc0, skip=0, fsize=4ce68 type=aa

<<<314984, 315392 bytes>>>
succeeded (status 0x88888888)
jumping to 0x177fffc0
config file
parse recovery\\\mx6_usb_sdp_uboot.conf
Trying to open device vid=0x1b67 pid=0x4000.........................
Could not open device vid=0x1b67 pid=0x4000
ECHO is off.
Downloading Toradex Easy Installer failed...
Press any key to continue . . .
7

Ups…you right!!! Thanks

8

Perfect that it works. Thanks for you feedback.

9

Hi @TJO

Just to be sure. Did you really use the Colibri version of Toradex Easy Installer?

Could you also share the output from the console of the SoM?

Thanks and best regards,
Jaski
