Trouble with LVDS Dual Channel Apalis IMX6

Technical Support
, , , ,
1

Hello,

I am trying to make work LVDS dual channel with the Apalis IMX6 and the Apalis Evaluation Board but I am not able to get any video.

This is my UBoot vidargs

vidargs=mxc_hdmi.only_cea=1 video=mxcfb0:dev=ldb, video=mxcfb1:off video=mxcfb2:off video=mxcfb3:off fbmem=32M

And I also modified the device tree with the next:

--- a/arch/arm/boot/dts/imx6qdl-apalis.dtsi
+++ b/arch/arm/boot/dts/imx6qdl-apalis.dtsi
@@ -89,7 +89,7 @@
 	mxcfb1: fb@0 {
 		compatible = "fsl,mxc_sdc_fb";
 		disp_dev = "ldb";
-		interface_pix_fmt = "RGB666";
+		interface_pix_fmt = "RGB24";
 		default_bpp = <16>;
 		int_clk = <0>;
 		late_init = <0>;
@@ -508,19 +508,32 @@

 &ldb {
 	status = "okay";
-//	split-mode;
-//	dual-mode;
+	split-mode;

 	lvds-channel@0 {
 		reg = <0>;
 		fsl,data-mapping = "spwg"; /* "jeida"; */
-		fsl,data-width = <18>;
+		fsl,data-width = <24>;
 		crtc = "ipu2-di1";
 		primary;
 		status = "okay";

 		display-timings {
-			native-mode = <&timing_xga>;
+			native-mode = <&timing_widehd>;
+			timing_widehd: 1920x720 {
+				clock-frequency = <47500000>;
+				hactive = <1920>;
+				vactive = <720>;
+				hback-porch = <0>;
+				hfront-porch = <0>;
+				vback-porch = <0>;
+				vfront-porch = <0>;
+				hsync-len = <80>;
+				vsync-len = <40>;
+				/*hsync-active = <0>;
+				vsync-active = <0>;*/
+				pixelclk-active = <0>;
+			};
 			/* LDB-AM-800600LTNQW-A0H */
 			timing_svga: 800x600 {
 				clock-frequency = <55000000>;

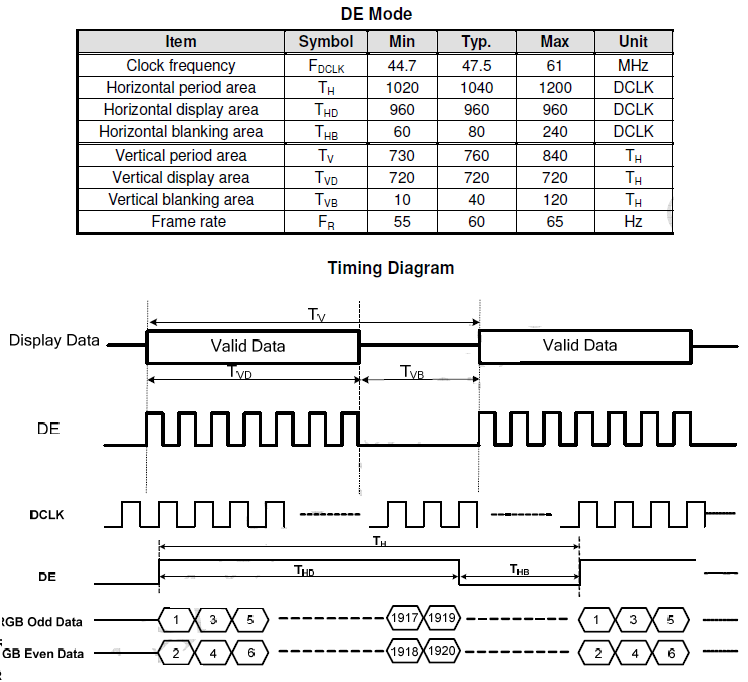

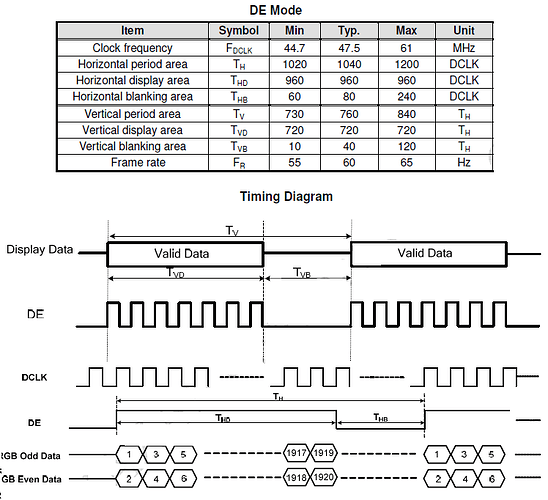

The timing of my TFT is:

1369-times.png748×682 46.7 KB

Info of linux version:

root@apalis-imx6:~# uname -a
Linux apalis-imx6 4.9.87-2.8.4+g3bb6e3284a1b #1 SMP Fri Nov 30 03:50:06 UTC 2018 armv7l GNU/Linux

fbset info:

root@apalis-imx6:~# fbset

mode "1920x720-31"
    # D: 47.501 MHz, H: 23.751 kHz, V: 31.251 Hz
    geometry 1920 720 1920 720 16
    timings 21052 0 0 0 0 80 40
    rgba 5/11,6/5,5/0,0/0
endmode

Can you help me to review it and see If I am missing something?

Thanks

2

Hi

In the display-timings you have to specify the pixelclock used, which in your case would be 95 MHz. As the data is then split to two LVDS channel each channel uses half of that as its clock frequency.

I don’t know what happens if you do not specify the polarity of HSYNC, VSYNC even if your display is not using these signals. I would keep the hsync-active and vsync-active properties.

The timing generator has some limitations in minimal times for front/back/sync lenght. Maybe the timings gets automatically adapted in the code, however I would recommend to assign the blanking time over these three settings.

E.g.:

 		display-timings {
-			native-mode = <&timing_xga>;
+			native-mode = <&timing_widehd>;
+			timing_widehd: 1920x720 {
+				clock-frequency = <95000000>;
+				hactive = <1920>;
+				vactive = <720>;
+				hback-porch = <20>;
+				hfront-porch = <20>;
+				vback-porch = <10>;
+				vfront-porch = <10>;
+				hsync-len = <40>;
+				vsync-len = <20>;
+				hsync-active = <0>;
+				vsync-active = <0>;
+				pixelclk-active = <0>;
+			};

Max

3

Thank you, it works great
