RVH mainboard RevB with a Toradex Am69A V1.1 mapping to a VSC8514 quad Phy

I have a custom overlay to map from the Toradex k3-am69-aquila-dev.dtb base that will allow the Aquila SOM to control the VSC8514 quad phy.

I updated the linux kernel /drivers/net/phy/mscc dirver to include the physical address of the phy.

here is the overlay text I am trying to map to the base overlay.

/* ============================================================
 * (CPSW/QSGMII fragments for Ethernet Switch Phi)
 * ============================================================ */
/*
 *	Signal			|	SOM Pin	 |  AM69 V1.1 Func | AM69 V1.1 Pin SoC
 * ===================================================================
 *	ETH_2_QSGMII_RX_N	B83			SGMII2_RXN0		SERDES2_RX3_N (AT1)
 *	ETH_2_QSGMII_RX_P	B84			SGMII2_RXP0		SERDES2_RX3_P (AT2)
 *	ETH_2_QSGMII_TX_N	B86			SGMII2_TXN0		SERDES2_TX3_N (AP1)
 *	ETH_2_QSGMII_TX_P	B87			SGMII2_TXP0		SERDES2_TX3_P (AP2)
 *
 *	ETH_2_INT#			B81			GPIO0_44		MCASP1_AXR3   (AL33)
 *  PHY_NRESET#			B46			GPIO0_33		MCASP0_AXR5	  (AG38)
 *
 *  CPSW9X
 *	ETH_2_MDC			B90			MDIO0_MDC		MCASP2_AFSX   (AE37)
 *	ETH_2_MDIO			B89			MDIO0_MDIO		MCASP2_AXR0   (AC36)
 *
 * SoC internal pinctrl index
 *
 *  PIN22 → 0x5c → AC36 → MCASP2_AXR0 → SoM B89 → MDIO
 *  PIN23 → 0x58 → AE37 → MCASP2_AFSX → SoM B90 → MDC
  =================================================================== */

/* =================================================================
 * RVH ETH_2 QSGMII / VSC8514 final mapping
 *
 * Physical path:
 *   RVH VSC8514 copper PHY quad
 *     -> QSGMII differential pair ETH_2_QSGMII
 *     -> Aquila SOM pins B83/B84/B86/B87
 *     -> AM69A SERDES2 lane 3
 *     -> WIZ2 / SERDES2: /bus@100000/wiz@5020000/serdes@5020000/phy@3
 *     -> AM69A CPSW9G: /bus@100000/ethernet@c000000
 *
 * Management path:
 *   RVH VSC8514 MDIO/MDC
 *     -> Aquila SOM B89/B90
 *     -> AM69A MAIN CPSW9G MDIO pins
 *     -> /bus@100000/ethernet@c000000/mdio@f00
 *
 * Proven on hardware:
 *   VSC8514 PHY IDs are strapped at 0x04, 0x05, 0x06, 0x07.
 *   The active MDIO bus is c000f00.mdio, not c200f00.mdio.
 *
 * CPSW9G MAC mapping:
 *   CPSW9G port@5 -> VSC8514 PHY0 -> MDIO 0x04 -> PHY Handle 0x1FE
 *   CPSW9G port@6 -> VSC8514 PHY1 -> MDIO 0x05 -> PHY Handle 0x200
 *   CPSW9G port@7 -> VSC8514 PHY2 -> MDIO 0x06 -> PHY Handle 0x201
 *   CPSW9G port@8 -> VSC8514 PHY3 -> MDIO 0x07 -> PHY Handle 0x202
 *
 * Critical Linux fix:
 *   Base DT marks CPSW9G ports as ti,mac-only. These ports are PHY-backed,
 *   so delete ti,mac-only or Linux phylink/ethtool behaves as MII/PHYAD 0
 *   and ip link set up can fail with EIO.
 * ================================================================ */

fragment@150 {
	target-path = "/bus@100000/ethernet@c000000";
	__overlay__ { status = "okay"; };
};

fragment@151 {
	target-path = "/bus@100000/wiz@5020000";
	__overlay__ { status = "okay"; };
};

fragment@152 {
	target-path = "/bus@100000/wiz@5020000/serdes@5020000";
	__overlay__ {
		status = "okay";
		#address-cells = <1>;
		#size-cells = <0>;

		serdes2_qsgmii_link: phy@3 {
			reg = <3>;
			status = "okay";
			#phy-cells = <0>;
			cdns,num-lanes = <1>;
			cdns,phy-type = <PHY_TYPE_QSGMII>;
			resets = <&serdes_wiz2 4>;
		};
	};
};

fragment@153 {
	target-path = "/bus@100000/ethernet@c000000/ethernet-ports/port@2";
	__overlay__ {
		status = "disabled";
	};
};

fragment@154 {
	target = <&cpsw0_phy_gmii_sel>;
	__overlay__ {
		ti,qsgmii-main-ports = <1>;
	};
};

fragment@155 {
	target-path = "/bus@100000/ethernet@c000000/mdio@f00";
	__overlay__ {
		status = "okay";
		#address-cells = <1>;
		#size-cells = <0>;

		/* Shared VSC8514 reset drive on Aquila B46 / GPIO0_33. GPIO is active-high into MOSFET; MOSFET applies active-low nRESET to PHY.
		 * Datasheet requires >=2 ms assertion after power/clock stable
		 * and >=105 ms before SMI/MDIO access after de-assert.
		 * Use 200 ms margin for bring-up.
		 */
		reset-gpios = <&main_gpio0 33 GPIO_ACTIVE_HIGH>;
		/* This is a bus-level shared reset for all four VSC8514 PHY addresses. */
		/* Assert reset for 10 ms, then wait 200 ms after deassert before MDIO. */
		reset-delay-us = <10000>;
		reset-post-delay-us = <200000>;

		qsgmii_phy0: ethernet-phy@4 {
			compatible = "ethernet-phy-ieee802.3-c22";
			reg = <0x04>;
			#phy-cells = <0>;
			max-speed = <1000>;
		};

		qsgmii_phy1: ethernet-phy@5 {
			compatible = "ethernet-phy-ieee802.3-c22";
			reg = <0x05>;
			#phy-cells = <0>;
			max-speed = <1000>;
		};

		qsgmii_phy2: ethernet-phy@6 {
			compatible = "ethernet-phy-ieee802.3-c22";
			reg = <0x06>;
			#phy-cells = <0>;
			max-speed = <1000>;
		};

		qsgmii_phy3: ethernet-phy@7 {
			compatible = "ethernet-phy-ieee802.3-c22";
			reg = <0x07>;
			#phy-cells = <0>;
			max-speed = <1000>;
		};
	};
};
fragment@156 {
	target-path = "/bus@100000/ethernet@c000000/ethernet-ports/port@1";
	__overlay__ {
		status = "okay";
		label = "port1";
		reg = <0x01>;
		phy-mode = "qsgmii";
		phy-handle = <&qsgmii_phy0>;
		local-mac-address = [00 14 2d d0 2d c1];
		/* MAC mux plus shared SERDES2 lane 3 configured as QSGMII. */
		phys = <&cpsw0_phy_gmii_sel 1>, <&serdes2_qsgmii_link>;
		phy-names = "mac", "serdes";
	};
};

fragment@157 {
	target-path = "/bus@100000/ethernet@c000000/ethernet-ports/port@2";
	__overlay__ {
		status = "okay";
		label = "port2";
		reg = <0x02>;
		phy-mode = "qsgmii";
		phy-handle = <&qsgmii_phy1>;
		local-mac-address = [00 14 2d d0 2d c2];
		/* MAC mux plus shared SERDES2 lane 3 configured as QSGMII. */
		phys = <&cpsw0_phy_gmii_sel 2>, <&serdes2_qsgmii_link>;
		phy-names = "mac", "serdes";
	};
};

fragment@158 {
	target-path = "/bus@100000/ethernet@c000000/ethernet-ports/port@3";
	__overlay__ {
		status = "okay";
		label = "port3";
		reg = <0x03>;
		phy-mode = "qsgmii";
		phy-handle = <&qsgmii_phy2>;
		local-mac-address = [00 14 2d d0 2d c3];
		/* MAC mux plus shared SERDES2 lane 3 configured as QSGMII. */
		phys = <&cpsw0_phy_gmii_sel 3>, <&serdes2_qsgmii_link>;
		phy-names = "mac", "serdes";
	};
};

fragment@159 {
	target-path = "/bus@100000/ethernet@c000000/ethernet-ports/port@4";
	__overlay__ {
		status = "okay";
		label = "port4";
		reg = <0x04>;
		phy-mode = "qsgmii";
		phy-handle = <&qsgmii_phy3>;
		local-mac-address = [00 14 2d d0 2d c4];
		/* MAC mux plus shared SERDES2 lane 3 configured as QSGMII. */
		phys = <&cpsw0_phy_gmii_sel 4>, <&serdes2_qsgmii_link>;
		phy-names = "mac", "serdes";
	};
};

fragment@160 {
	target-path = "/bus@100000/pinctrl@11c000";
	__overlay__ {
		bia5_v11_cpsw9g_mdio_pins: bia5-v11-cpsw9g-mdio-pins {
			pinctrl-single,pins = <
				/* MDIO */
				J784S4_IOPAD(0x5c, PIN_INPUT_PULLUP, 4)

				/* MDC */
				J784S4_IOPAD(0x58, PIN_OUTPUT, 4)
			>;
		};
	};
};

fragment@161 {
	target-path = "/bus@100000/ethernet@c000000/mdio@f00";
	__overlay__ {
		status = "okay";
		pinctrl-names = "default";
		pinctrl-0 = <
			&bia5_v11_cpsw9g_mdio_pins
		>;
	};
};

tdx-info from the SOM
BIA5 - RVH AM69A Headless Image aquila-am69-12594628 ttyS2
Aquila-AM69_RVH-Embedded-Image

aquila-am69-12594628 login: root
root@aquila-am69-12594628:~# tdx-info

Software summary
------------------------------------------------------------
Bootloader:               U-Boot
Kernel version:           6.6.119-g8af7a2cb6a06-dirty #1 SMP PREEMPT Tue May  5 11:38:39 AEST 2026
Kernel command line:      root=PARTUUID=5a1d15ea-02 ro rootwait console=tty1 console=ttyS2,115200
Distro name:              NAME="BIA5 RVH AM69A"
Distro version:           VERSION_ID=7.5.0-devel-20260205045228-build.0
Distro variant:           -
Hostname:                 aquila-am69-12594628
------------------------------------------------------------

Hardware info
------------------------------------------------------------
HW model:                 BIA5 RVH AM69A Embedded Platform
Toradex version:          0211 V1.1A
Serial number:            12594628
Processor arch:           aarch64
------------------------------------------------------------
my question is:
Q1. If we have recently moved from Aquila AM69 V1.0 to Aquila AM69 V1.1, should the base overlay change from k3-am69-aquila-dev.dtb?

*	gpiochip | line | AQUILA Pin Name | RVH function | direction | active
 *	===================================================================================================
 *					AQUILA_A11		GPIO_11_CSI		in		high
 *	gpio2		1	AQUILA_B17		1V8-PG	    	in		low
 *	gpio2		2	AQUILA_B18		SD-1-PWR-FLT	in		low
 *	gpio1		48	AQUILA_B19		3V3-ISO-EN		out		high
 *	gpio2		12	AQUILA_B42		56V-EN			out		high
 *	gpio2		31	AQUILA_B43		2V5-PG			in		low
 *	gpio2		13	AQUILA_B44		1V0-PG			in		low
 *	gpio2		18	AQUILA_B45		3V3-ISO-FLT		in		low
 *	gpio2		33	AQUILA_B46		PHY_NRESET#		out		low
 *					AQUILA_B57		EEPROM-WE		out		high
 *	gpio2		16	AQUILA_B58		EXT-LED3		out		high
 *	gpio1		32	AQUILA_C01	    EXT-LED1	    out		high
 *	gpio1		33	AQUILA_C02		EXT-BTN1		in		low
 *	gpio1		37	AQUILA_C03		BMA400_INT		in		high
 *	gpio1		39	AQUILA_C04		56V-PG			in		low
 *	gpio1		17	AQUILA_C20		NET8			in		low
 *	gpio1		29	AQUILA_C21		TPM-SPI-CS		out		low
 *	gpio1		30	AQUILA_C22		TPM-PIRQ		in		low
 *                  AQUILA_C23		TEMP_ALT		in		high
 *					AQUILA_C24		PSE_INT			in		low
 *	gpio2		25	AQUILA_C25		BTN-LED			out		high
 *	gpio2		24	AQUILA_C26		RFM_RST		    out		low
 *  gpio0       49  AQUILA_D06  	RFM_IRQ			in 		low
 *	gpio2		34	AQUILA_D23		NET1			in		low
 *	gpio2		17	AQUILA_D24		NET2			in		low
 *	gpio2		29	AQUILA_D25		NET4			in		low
 * ==============================================================

Hi, I’m the Toradex AI Assistant.

I might make mistakes or occasionally get you wrong. Our support team will step in if needed.


Based on your tdx-info output, I can see you’re using an Aquila AM69 V1.1A with BSP 7.5.0-devel. To properly answer your question about the base device tree overlay change, I need to clarify a few details about your specific setup.

Could you please specify:

  1. Which exact BSP version are you targeting for production (e.g., BSP 7.x.y)?
  2. Are you using Yocto-based BSP or Torizon OS for your final deployment?

You can get detailed information using the tdx-info command as documented here.

Regarding Your Base Device Tree Question

The device tree structure follows a hierarchical approach with three levels: SoC level, SoM level, and carrier board level(1). For Toradex modules, device tree files are typically named following the pattern ${soc}-${module}-${board}.dtb(1).

When moving from Aquila AM69 V1.0 to V1.1, you should check if there are hardware-specific changes that require different device tree configurations. The pre-built device tree overlays for Toradex System on Modules are available and documented(2).

Device Tree Overlay Development Recommendations

For your custom VSC8514 quad PHY overlay development, I recommend following the established development cycle(3):

  1. Evaluation phase: Check existing pre-built overlays
  2. Development phase: Build overlays manually for faster iteration
  3. Production phase: Integrate into your custom Yocto build

Your overlay structure looks comprehensive, but to provide specific guidance on the base device tree compatibility and any required modifications for V1.1 hardware, I’ll need the BSP version details mentioned above.

Common platforms to consider:

  • Hardware: Aquila AM69
  • OS: BSP 7, Yocto 7.x.y
  • Integration: Device tree overlays, GPIO, Ethernet

Best regards,
Toradex AI Assistant.


Did you like my answer? :+1: :-1:

If I answered your question, please tick the “Solution” checkbox.

For follow-up questions to me, please use @ToradexAI in your post.

aquila-am69-12594628 login: root
root@aquila-am69-12594628:~# tdx-info

Software summary

Bootloader: U-Boot

Kernel version: 6.6.119-g8af7a2cb6a06-dirty #1 SMP PREEMPT Tue May 5 11:38:39 AEST 2026
Kernel command line: root=PARTUUID=5a1d15ea-02 ro rootwait console=tty1 console=ttyS2,115200
Distro name: NAME=“BIA5 RVH AM69A”
Distro version: VERSION_ID=7.5.0-devel-20260205045228-build.0
Distro variant: -
Hostname: aquila-am69-12594628

Hardware info

HW model: BIA5 RVH AM69A Embedded Platform

Toradex version: 0211 V1.1A
Serial number: 12594628
Processor arch: aarch64

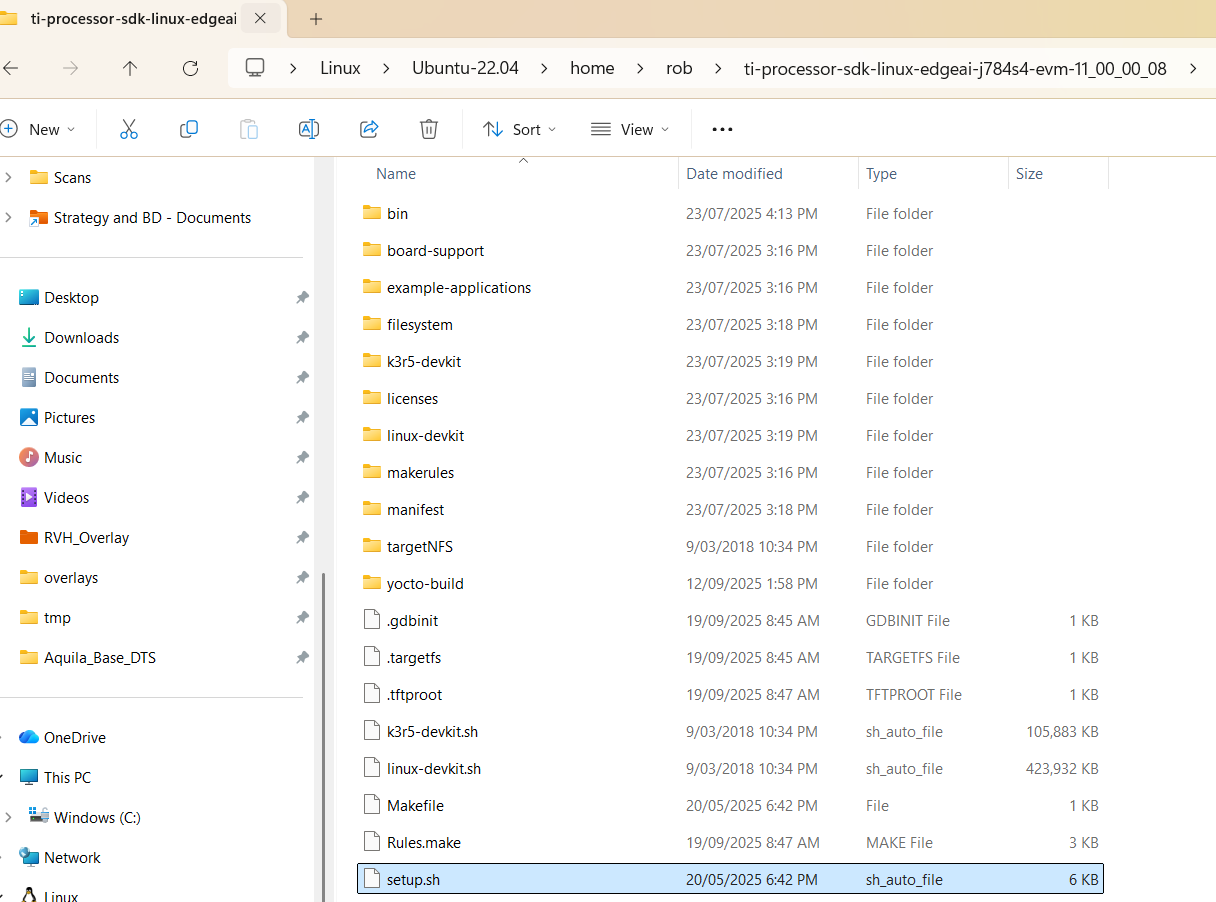

ti-processor-sdk-linux-edgeai-j784s4-evm-11_00_00_08

Thank you for providing the detailed tdx-info output. Based on your system information, I can see you’re using an Aquila AM69 V1.1A (PID8: 0211) with a custom BSP 7.5.0-devel build using the TI EdgeAI SDK.

Base Device Tree for Aquila AM69 V1.1A

Looking at the available pre-built device tree overlays for Aquila modules(1), the Aquila family supports downstream-based images only. For BSP 7.x, the base device tree structure should remain consistent between V1.0 and V1.1 hardware revisions, unless there are specific hardware changes that require different configurations.

Your current base reference to k3-am69-aquila-dev.dtb should be appropriate for V1.1A hardware. The device tree naming convention follows the pattern ${soc}-${module}-${board}.dtb, so k3-am69-aquila-dev.dtb correctly represents the AM69 SoC on the Aquila development board.

Available Overlays for Aquila AM69

According to the documentation(1), for Aquila AM69/TDA4 on BSP 7.x, the following overlays are available:

  • HDMI: Not supported natively
  • DSI to HDMI: aquila-am69_dsi-to-hdmi_overlay.dtbo
  • DSI to LVDS: aquila-am69_dsi-to-lvds_panel-cap-touch-10inch-lvds_overlay.dtbo
  • Capacitive Touch Display: aquila-am69_panel-cap-touch-10inch-dsi_overlay.dtbo and aquila-am69_adapter_panel-cap-touch-10inch-dsi_overlay.dtbo
  • CSI Camera: aquila-am69_csi1_ov5640_overlay.dtbo and aquila-am69_csi2_ov5640_overlay.dtbo
  • SPIDEV: aquila-am69_spi1_spidev_overlay.dtbo and aquila-am69_spi2_spidev_overlay.dtbo

Your Custom VSC8514 Overlay Analysis

Your overlay appears well-structured for the VSC8514 quad PHY implementation. The key elements I notice:

  1. SERDES Configuration: You’re correctly configuring SERDES2 lane 3 for QSGMII
  2. MDIO Management: Proper MDIO bus configuration at /bus@100000/ethernet@c000000/mdio@f00
  3. GPIO Reset Control: Using GPIO0_33 for PHY reset management
  4. Port Mapping: Mapping CPSW9G ports 1-4 to VSC8514 PHY addresses 0x04-0x07

Recommendations

Since you’re using a custom BSP build with TI EdgeAI SDK, ensure that:

  1. Your overlay compilation includes the proper device tree includes for the AM69 platform
  2. The pinctrl configurations match the V1.1A hardware pinout
  3. Test the overlay deployment using the evaluation methods described in the documentation(2)

Your base device tree choice appears correct for the V1.1A hardware revision.

Best regards,
Toradex AI Assistant.


Did you like my answer? :+1: :-1:

If I answered your question, please tick the “Solution” checkbox.

For follow-up questions to me, please use @ToradexAI in your post.

ok, thank you for confirmation that I have the correct base overlay for the Aquila V1.1 SOM.

My next question is around getting that overlay correct from fragment 155 to 159 for the ETH1 to ETH4 ports. I am not getting traffic on these ports and something is amiss.

ip link shows the ports are there, but I am not seeing traffic

root@aquila-am69-12594628:~# ip link
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN mode DEFAULT group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP mode DEFAULT group default qlen 1000
link/ether 00:14:2d:c0:2d:c4 brd ff:ff:ff:ff:ff:ff
3: eth1: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN mode DEFAULT group default qlen 1000
link/ether 00:14:2d:d0:2d:c1 brd ff:ff:ff:ff:ff:ff
4: eth2: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN mode DEFAULT group default qlen 1000
link/ether 00:14:2d:d0:2d:c2 brd ff:ff:ff:ff:ff:ff
5: eth3: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN mode DEFAULT group default qlen 1000
link/ether 00:14:2d:d0:2d:c3 brd ff:ff:ff:ff:ff:ff
6: eth4: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN mode DEFAULT group default qlen 1000
link/ether 00:14:2d:d0:2d:c4 brd ff:ff:ff:ff:ff:ff
root@aquila-am69-12594628:~# ethtool eth4
Settings for eth4:
Supported ports: [ MII ]
Supported link modes: 10baseT/Half 10baseT/Full
100baseT/Half 100baseT/Full
1000baseT/Full
Supported pause frame use: Symmetric
Supports auto-negotiation: Yes
Supported FEC modes: Not reported
Advertised link modes: 10baseT/Half 10baseT/Full
100baseT/Half 100baseT/Full
1000baseT/Full
Advertised pause frame use: Symmetric
Advertised auto-negotiation: Yes
Advertised FEC modes: Not reported
Speed: Unknown!
Duplex: Unknown! (255)
Auto-negotiation: on
Port: MII
PHYAD: 0
Transceiver: internal
Supports Wake-on: d
Wake-on: d
Current message level: 0x000020f7 (8439)
drv probe link ifdown ifup rx_err tx_err hw
Link detected: no
root@aquila-am69-12594628:~#
