LVDS1_B single mode

Dear all,

i’m working with the following configuration:
Apalis iMX8QM 4GB WB IT V1.1D
Ixora Carrier Board V 1.2A
DISTRO_VERSION = “6.8.2”
DISTRO_CODENAME = “krikstone”

10.1 I am trying to connect LCD(RGB666) to Ixora carrier board.
I want to connect LVDS1_B without using LVDS1_A (single mode)
I am writing device tree overlay:

 &ldb2 {
     status = "okay";

     lvds-channel@0 {
         status = "disabled"; // LVDS1_A OFF
     };

     lvds-channel@1 {
         reg = <1>;
         fsl,data-mapping = "spwg";
         fsl,data-width = <18>;
         status = "okay";

         port@1 {
             reg = <1>;

             lvds1b_out: endpoint {
                 remote-endpoint = <&panel_lvds_in>;
             };
         };
     };
 };
&panel_lvds {
    data-mapping = "jeida-18"; // jeida-18bit panel
    height-mm = <136>;
    width-mm = <217>;
    status = "okay";

    panel-timing {
        clock-frequency = <72400000>;
        de-active = <1>;
        hactive = <1280>;
        hback-porch = <88>;
        hfront-porch = <72>;
        hsync-active = <0>;
        hsync-len = <40>;
        pixelclk-active = <1>;
        vactive = <800>;
        vback-porch = <20>;
        vfront-porch = <18>;
        vsync-active = <0>;
        vsync-len = <9>;
    };

    port {
        panel_lvds_in: endpoint {
            remote-endpoint = <&lvds1b_out>;
        };
    };
};

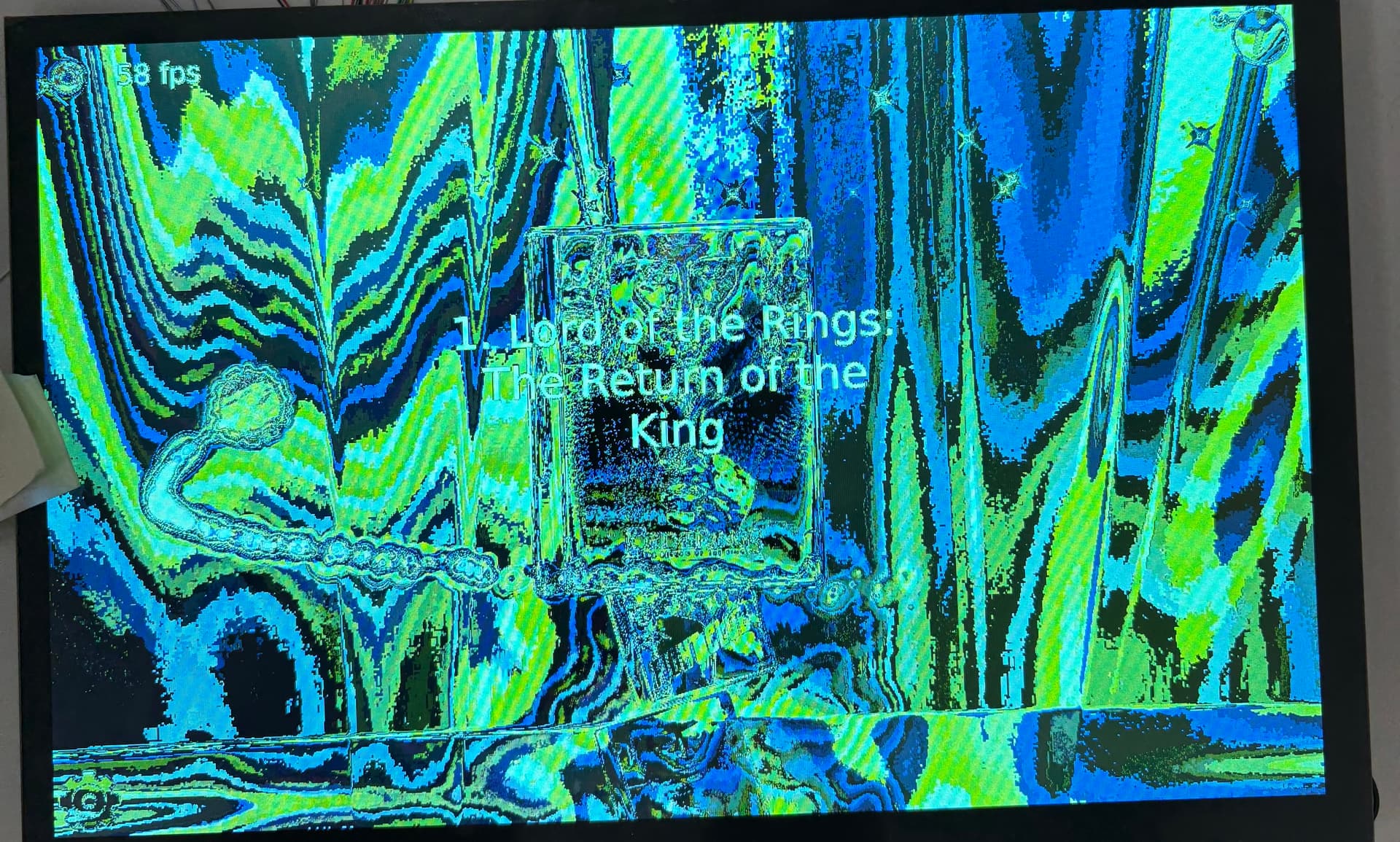

The colors on the LCD appear as follows:

Can you help me to solve this problem?

Best regards,
sjjin

Hi, I’m the Toradex AI Assistant. The Toradex Support team will follow up with you shortly!

Did you like my answer?

:+1: :-1:


Hello! When working with LVDS displays on Toradex hardware, there are several key layout requirements to keep in mind:

  • The trace impedance should be 100Ω ±15% differential and 50Ω ±15% single-ended.
  • Maximum intra-pair skew should be less than 1 picosecond (ps).
  • Maximum trace length skew between clock and data pairs should be less than 3.5 picoseconds.
  • Maximum trace length on the carrier board and display cable should be less than 500 millimeters.
  • Minimum pair-to-pair spacing should be greater than twice the intra-pair spacing.

For configuring LVDS1_B in single mode without LVDS1_A, specific documentation might not be readily available. However, you can explore the following resources for guidance:

  1. Review the device tree documentation specific to your i.MX 8 module, as it may contain relevant configuration details.
  2. Consult the i.MX 8 reference manual, which often includes comprehensive information on LVDS configuration options.

If you need further assistance, I can provide a general approach for LVDS configuration based on available documentation.

Feel free to reach out if you have more questions!

Best regards, Toradex AI Assistant.

Hi @sjjin , is the LVDS on channel B working now?

Hi, @benjamin.tx

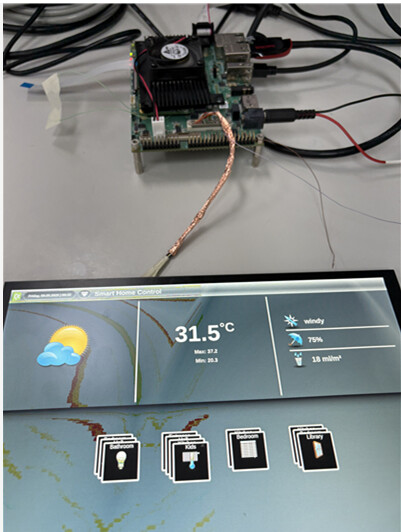

Output in LVDS1_B single mode,
but there’s an issue where the color is faded on one half (the left side) of the LCD.
Can you help?

Best regards,
sjjin

Hi @sjjin , what is the LVDS panel input color mapping? It can be found in the LVDS display datasheet.

hi, @benjamin.tx

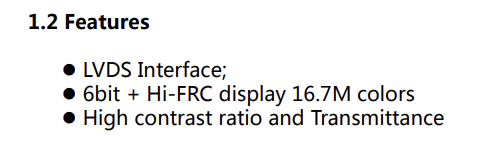

LVDS panel input color 6bit + Hi-FRC display 16.7M colors → RGB666

Best regards,
sjjin

Hi @sjjin , there are different color mappings for 18-bit input. fsl,data-mapping can be set to spwg or jeida. data-mapping has options of jeida-18, jeida-24, and vesa-24. You can try different combinations.

https://www.kernel.org/doc/Documentation/devicetree/bindings/display/imx/ldb.txt
https://www.kernel.org/doc/Documentation/devicetree/bindings/display/panel/panel-lvds.txt

hi, @benjamin.tx

I have tried combinations of fsl,data-mapping jeida or spwg, and within data-mapping, I’ve tried the options jeida-18, jeida-24, and vesa-24.
However, the best result I could achieve is shown in the attached image.

fsl,data-mapping=spwg, data-mapping=jeida-18

Do you think it’s a timing configuration problem?

Best regards,
sjjin
