Framos driver on custom board

Hi all, me again…

I’m trying to bring up the Framos 662 sensor on our custom board, but for some reason I can’t get the linking to work.

We’ve got the following kernel modules installed

Module
vvcam_isp
vvcam_dwe
vvcam_video
imx8_media_dev
imx662
galcore

I can see the sensor gets registered as a subdevice in dmesg

    5.079145] enter imx662_probe
[    5.082765] enter imx662_power_on
[    5.130659] enter imx662_set_exp exposure received: 500 control: 1
[    5.137490] enter imx662_set_exp exposure register: 1213 integration_time_line: 37
[    5.150900] enter imx662_set_gain: gain received: 0 control: 1
[    5.156776] imx662_set_gain: gain register: 0
[    5.163500] enter imx662_set_black_level black level: 50
[    5.171183] enter imx662_set_black_level black level: 50
[    5.176531] enter imx662_set_data_rate data rate received: 7
[    5.176539] imx662_change_data_rate++
[    5.178324] imx662_change_data_rate: Setting data rate to value: 7
[    5.192957] imx662_adjust_hmax_register:++
[    5.203877] imx662_adjust_hmax_register:  one line : 13333
[    5.209390] enter imx662_set_sync_mode sync mode 0
[    5.214799] enter imx662_configure_triggering_pins
[    5.221074] enter imx662_set_fps fps received: 60
[    5.225811] enter imx662_set_fps vmax register: 1250 line_time 13333
[    5.235112] enter imx662_set_test_pattern
[    5.241948] imx662_probe camera mipi imx662, is found
[    6.263408] imx8_media_dev: module is from the staging directory, the quality is unknown, you have been warned.
[    6.276655] mx8-img-md: Registered sensor subdevice: imx662 2-001a (1)
[    6.301027] mx8-img-md: created link [imx662 2-001a] => [mxc-mipi-csi2.0]

Media controller shows


Media controller API version 5.15.148

Media device information
------------------------
driver          vvcam-video
model           viv_media
serial
bus info
hw revision     0x0
driver version  5.15.148

Device topology
- entity 1: viv_v4l20 (1 pad, 1 link)
            type Node subtype V4L flags 0
            device node name /dev/video2
        pad0: Sink
                <- "vvcam-isp.0":0 [ENABLED]

- entity 5: vvcam-isp.0 (1 pad, 1 link)
            type Node subtype V4L flags 0
            device node name /dev/v4l-subdev0
        pad0: Source
                -> "viv_v4l20":0 [ENABLED]

- entity 7: vvcam-dwe.0 (2 pads, 0 link)
            type Node subtype V4L flags 0
            device node name /dev/v4l-subdev1
        pad0: Source
        pad1: Sink

and

root@meercam-worker-framos-test:~ # v4l2-ctl --list-devices
 ():
        /dev/v4l-subdev0
        /dev/v4l-subdev1

VIV (platform:viv0):
        /dev/video2

vsi_v4l2dec (platform:vsi_v4l2dec):
        /dev/video1

vsi_v4l2enc (platform:vsi_v4l2enc):
        /dev/video0

viv_media (platform:vvcam-video):
        /dev/media0

I wondered if anyone has an example dmesg with this camera successfully loading?
I am curious to see if I’ve got one or more of the following:

  • Some kernel config I am missing?
  • An additional kernel module missing?
  • Something wrong in the dts?!!?

My dts looks like this ( apologies for the old fragment syntax, I haven’t yet converted… )

/dts-v1/;
/plugin/;

#include <dt-bindings/clock/imx8mp-clock.h>
#include <dt-bindings/gpio/gpio.h>

/ {
        /* ------------------------------------------------------------------ *
         *  Fragment 0 – fixed regulators (unchanged)                         *
         * ------------------------------------------------------------------ */
        fragment@0 {
                target-path = "/";
                __overlay__ {
                        reg_cam1: regulator-cam1 {
                                compatible          = "regulator-fixed";
                                regulator-name      = "cam_pvdd1";
                                regulator-min-microvolt = <3300000>;
                                regulator-max-microvolt = <3300000>;
                                regulator-boot-on;
                                gpio                = <&gpio1 0 GPIO_ACTIVE_HIGH>;
                                enable-active-high;
                                regulator-always-on;
                        };

                        reg_cam2: regulator-cam2 {
                                compatible          = "regulator-fixed";
                                regulator-name      = "cam_pvdd2";
                                regulator-min-microvolt = <3300000>;
                                regulator-max-microvolt = <3300000>;
                                regulator-boot-on;
                                gpio                = <&gpio1 1 GPIO_ACTIVE_HIGH>;
                                enable-active-high;
                                regulator-always-on;
                        };
                };
        };

        /* ------------------------------------------------------------------ *
         *  Fragment 1 – cameradev                                             *
         * ------------------------------------------------------------------ */
        fragment@1 {
                target = <&cameradev>;
                __overlay__ {
                        status = "okay";
                };
        };

    /* ------------------------------------------------------------------ *
         *  Fragment 2 – IMX662 @ I²C2 (bus-address 0x1b)                      *
         * ------------------------------------------------------------------ */
        fragment@2 {
                target = <&i2c2>;
                __overlay__ {
                        status = "okay";
                        clock-frequency = <100000>;

                        imx662_mipi@1a {
                                assigned-clocks       = <&clk IMX8MP_CLK_IPP_DO_CLKO2>;
                                assigned-clock-parents = <&clk IMX8MP_CLK_24M>;
                                assigned-clock-rates   = <24000000>;
                                clocks                 = <&clk IMX8MP_CLK_IPP_DO_CLKO2>;
                                clock-names            = "csi_mclk";

                                compatible    = "framos,imx662";
                                reg           = <0x1a>;
                                csi_id        = <0>;
                                mipi_csi;

                                rst-gpios            = <&gpio1 6 GPIO_ACTIVE_LOW>;   /* Meercam SODIMM 212 */
                                cam_pvdd-supply      = <&reg_cam2>;

                                status = "okay";

                                port {
                                        imx662_mipi_0_ep: endpoint {
                                                data-lanes           = <1 2 3 4>;
                                                clock-lanes          = <0>;
                                                max-pixel-frequency  = /bits/ 64 <500000000>;
                                                remote-endpoint      = <&mipi_csi0_ep>;
                                        };
                                };
                        };
                };
        };



        /* ------------------------------------------------------------------ *
         *  Fragment 2 – IMX662 @ I²C3 (bus-address 0x1a)                      *
         * ------------------------------------------------------------------ */
        fragment@3 {
                target = <&i2c3>;
                __overlay__ {
                        status = "okay";
                        clock-frequency = <100000>;

                        imx662_mipi1@1a {
                                /* ---- clocks ---- */
                                assigned-clocks       = <&clk IMX8MP_CLK_IPP_DO_CLKO2>;
                                assigned-clock-parents = <&clk IMX8MP_CLK_24M>;
                                assigned-clock-rates   = <24000000>;
                                clocks                 = <&clk IMX8MP_CLK_IPP_DO_CLKO2>;
                                clock-names            = "csi_mclk";

                                /* ---- identity ---- */
                                compatible    = "framos,imx662";
                                reg           = <0x1a>;
                                csi_id        = <1>;
                                mipi_csi;

                                /* ---- GPIO / supplies ---- */
                                rst-gpios            = <&gpio1 5 GPIO_ACTIVE_LOW>;   /* Meercam SODIMM 210 */
                                cam_pvdd-supply      = <&reg_cam1>;

                                status = "okay";

                                /* ---- endpoint ---- */
                                port {
                                        imx662_mipi_1_ep: endpoint {
                                                data-lanes           = <1 2 3 4>;
                                                clock-lanes          = <0>;
                                                max-pixel-frequency  = /bits/ 64 <500000000>;
                                                remote-endpoint      = <&mipi_csi1_ep>;
                                        };
                                };
                        };
                };
        };

        /* ------------------------------------------------------------------ *
         *  Fragment 4 – disable ISI_0                                         *
         * ------------------------------------------------------------------ */
        fragment@4 {
                target = <&isi_0>;
                __overlay__ {
                        status = "disabled";
                };
        };

        /* ------------------------------------------------------------------ *
         *  Fragment 5 – disable ISI_1                                         *
         * ------------------------------------------------------------------ */
        fragment@5 {
                target = <&isi_1>;
                __overlay__ {
                        status = "disabled";
                };
        };

        /* ------------------------------------------------------------------ *
         *  Fragment 6 – enable ISP_0                                          *
         * ------------------------------------------------------------------ */
        fragment@6 {
                target = <&isp_0>;
                __overlay__ {
                        status = "okay";
                };
        };

    /* ------------------------------------------------------------------ *
         *  Fragment 7 – enable ISP_1                                          *
         * ------------------------------------------------------------------ */
        fragment@7 {
                target = <&isp_1>;
                __overlay__ {
                        status = "okay";
                };
        };

        /* ------------------------------------------------------------------ *
         *  Fragment 8 – enable Dewarp                                         *
         * ------------------------------------------------------------------ */
        fragment@8 {
                target = <&dewarp>;
                __overlay__ {
                        status = "okay";
                };
        };

        /* ------------------------------------------------------------------ *
         *  Fragment 9 – MIPI-CSI 0 endpoint                                   *
         * ------------------------------------------------------------------ */
        fragment@9 {
                target = <&mipi_csi_0>;
                __overlay__ {
                        #address-cells = <1>;
                        #size-cells = <0>;
                        status = "okay";

                        port@0 {
                                reg = <0>;
                                mipi_csi0_ep: endpoint {
                                        data-lanes          = <1 2 3 4>;      /* number of lanes */
                                        csis-hs-settle      = <13>;
                                        csis-clk-settle     = <2>;
                                        csis-wclk;
                                        remote-endpoint     = <&imx662_mipi_0_ep>;
                                };
                        };
                };
        };

        /* ------------------------------------------------------------------ *
         *  Fragment 10 – MIPI-CSI 1 endpoint                                   *
         * ------------------------------------------------------------------ */
        fragment@10 {
                target = <&mipi_csi_1>;
                __overlay__ {
                        #address-cells = <1>;
                        #size-cells = <0>;
                        status = "okay";

                        port@1 {
                                reg = <1>;
                                mipi_csi1_ep: endpoint {
                                        data-lanes          = <1 2 3 4>;      /* number of lanes */
                                        csis-hs-settle      = <13>;
                                        csis-clk-settle     = <2>;
                                        csis-wclk;
                                        remote-endpoint     = <&imx662_mipi_1_ep>;
                                };
                        };
                };
        };
};

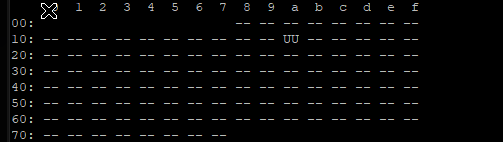

i2cdetect also the driver bound…

Any help would be greatly appreciated…

edit:

It’s worth noting we’ve succesfully tested this with a different camera module NOT using ISP, so I figure there’s something I am missing there.

Hi, I’m the Toradex AI Assistant.

I might make mistakes. Our support team will step in if needed. If I answered your question, please tick the “Solution” checkbox. For follow-up questions to me, please use @ToradexAI in your post.

Did you like my answer? :+1: :-1:


Hello! Thanks for the detailed information and for sharing your device tree and module setup. Based on your logs and the output from your media controller, it looks like your IMX662 sensor is being successfully detected and registered as a V4L2 subdevice. However, your media pipeline—according to the media controller output—is incomplete: it seems the sensor subdevice is not actually being linked through to the rest of the processing chain (ISP, DWE, etc.), and the entities (subdevices) are not forming the expected connections. Here are some steps and pointers to help you debug this further:

1. Kernel Module Loading Order

The Vivante VVCAM stack often requires modules to be loaded in a specific order for the media graph to set up properly. As a rule of thumb:

  • Remove all media-related modules, especially the custom ones (VVCAM ISP, DWE, etc.).
  • Insert the camera sensor driver (in your case, imx662) first.
  • Re-insert or load ISP, DWE, and VVCAM modules afterwards.

This ordering allows the drivers to register their entities so that the kernel can establish links in the media graph between them automatically.

More on module handling:

2. Review Your Device Tree

Your device tree fragments look comprehensive, but be sure to:

  • Double-check the compatible string (“framos,imx662”) matches what your driver expects.
  • Ensure all supplies and GPIOs (especially rst-gpios) are right for your board’s hardware design.
  • Review the remote-endpoint entries on both sides (CSI and camera sensor). Typos or mismatched labels will prevent link creation.
  • Data lane mapping (data-lanes = <1 2 3 4>;) should match your hardware wiring and what the driver expects.

3. Media Pipeline Link Creation

The media controller does not show links between the sensor → CSI → ISP → DWE → video node. This normally happens via the drivers during module probe. If links are not being created, possible reasons include:

  • The endpoints don’t reference each other correctly in the device tree.
  • A required driver/module failed to initialize, or isn’t loaded.
  • The sensor or ISP driver is missing formats or operations required for link creation.
  • Device tree fragments or .dtbo not applied at boot (check using dmesg or ls /proc/device-tree/).

Here is a general resource on how cameras are handled in the media pipeline:

4. Required Kernel Configuration

Check that you have all required kernel options enabled. At a minimum, you need:

  • CONFIG_VIDEO_V4L2
  • Drivers for the IMX662, CSI, ISP, DWE, and VVCAM framework (imx8_media_dev)
  • Media controller support, and subdev support

Sometimes, vendor-specific drivers require additional configs. You can check your current config with:

zcat /proc/config.gz | grep V4L

Look for lines related to your sensor, CSI, ISP, and media controller.

5. Module/Driver Probing and Logs

Reboot, ensure all required modules are in place, and check dmesg for errors or warnings from any media/video driver. See if you have any “probe failed” or “could not create link” messages.

6. Test With Video4Linux Tools

When the links are set up correctly, running:

media-ctl -p -d /dev/media0

should show a pipeline linking the sensor to the video device. If not, try manually linking entities (if your stack supports it), but normally this is handled automatically by the drivers.

Summary of Actions

  • Review and, if needed, reorder your module loading.
  • Double-check all device tree endpoint references for typos.
  • Confirm all required kernel config options are enabled.
  • Examine dmesg logs immediately after boot or module reload for any media/driver errors.
  • Use media-ctl to inspect your pipeline.
  • If possible, test using a known-working sensor/device tree setup to rule out hardware issues.

Would you like to share the output of media-ctl -p -d /dev/media0 and any related dmesg logs after following the above steps? I can help further interpret what is happening.

Best regards,
Toradex AI Assistant.

[1] Can't register /dev/videoX
[2] Cameras on Toradex System on Modules | Toradex Developer Center

Okay making progress, at least for me this recipe is broken on this line

There needs to be white space either side of file path else the patch never gets applied.

Okay that was definitely the case, we’ve also had to tweak the imx-isp run.sh script for our environment as we only have busybox installed and that makes the framos driver script fail.

What we’re struggling now with is it appears the clock signal isn’t being generated from the sensor. If anyone has experienced anything similar help would be greatly appreciated.

Hello @alan01252,

Looks like you are on the right path since you found the meta-toradex-framos layer and built your custom image.

Just for a sanity check, are you using a Verdin iMX8M Plus and BSP 7? I’m asking because this is the platform on which the Framos 662 camera has been tested to work.
Also, it looks like you are trying to add two Framos cameras. Is this true?
If this is the case, I would recommend trying one camera first and trying to get that working. That should technically work since we verified it on our carrier board. I recommend comparing your device tree fragment for imx662 with that in the meta-toradex-framos layer: meta-toradex-framos/recipes-kernel/linux/device-tree-overlays/verdin-imx8mp_imx662_overlay.dts.

In the meantime, I will check with a colleague and see if we have ever tested two of these cameras with the Verdin iMX8MP module.

Hi Rudhi,

Thanks for the response :slight_smile: We’ve tried pretty much everything at this point :joy:

We’re indeed using the imx8mp and attempting to use two cameras, although we have tried with just a single camera too.

I believe the DTS is like for like.

For the most part it’s “working” apart from some issue with us not being able to get a clock signal from the sensor.

The “start.sh” script provided by framos runs successfully, we can see the isp media server starting and have turned on debug logs to see it’s working.

We can see the sensor starts sending a data signal, but no clock signal when we request the stream with gstreamer.

Hello @alan01252,

I will give it a try here to make sure the procedure should work with one or two cameras.

Can you just confirm if you have the FPA-A/P24-V0X adapter board and you are using it to be able to connect the camera to your board?

Best Regards,
Bruno

Hi Bruno,

We have our own custom interposer but we think it’s wired up correctly. ( We’re talking to Framos technical support directly too )

It would be awesome if you could try, I’d be particularly interested in seeing what you get in dmesg and from the isp_media_server logs…

Thanks again!

Alan

Hello @alan01252,

Noted, thanks for the clarification.
Once I have done some tests, I will get back to you with more information.

Best Regards,
Bruno

Morning Bruno,

One thing I also noticed is the toradex framos layer is pinned to quite an old commit of the framosimaging/framos-nxp-driver repo.

I’m in the process of trying to get the latest commit to build/deploy here so will keep you in the loop.

At the very least I am hoping this’ll allow us to see more debug logging …

Hello @alan01252,

I did some additional testing here and one camera works out of the box, with no changes to the layer.

For two cameras, I think I am pretty close to getting the second camera working, part of what is required is to run the script with the correct configuration on the imx8-isp service:

/opt/imx8-isp/bin/run.sh -c dual_imx662 -lm

I modified the start_isp.sh file to ensure it runs with the dual configuration.

Just to confirm, are you using BSP 7 (scarthgap) or BSP 6 (kirkstone)?

Best Regards,
Bruno

Here’s our from the isp_media_server

INFO   : [ISP_MEDIA_SERVER] ******************************************************************
INFO   : [ISP_MEDIA_SERVER] VIV ISP Media Control Framework V4.2.2p20 (Mar 03 2023)
INFO   : [ISP_MEDIA_SERVER] ******************************************************************
INFO   : [MediaPipeline] NativeSensor Creat
INFO   : [NativeSensor] VIV_VIDIOC_S_MODEINFO, index 0, bounds 1936x1100, size (l 8, t 12, w 1920, h 1080), fps 60, bayer_pattern 0, bit_width 12
INFO   : [NativeSensor] setFormat isp input: bounds 1936X1100 left 8 top 12 size 1920X1080
INFO   : [NativeSensor] setFormat 8 1920 1080,  type 0, port: 0
INFO   : [MediaPipeline] NativeDewarp Creat
INFO   : [DewarpDriver] open: opening dw100 driver.
DEBUG  : [DEWARP_HW] enter create
INFO   : [DEWARP_HW] dwe type /dev/v4l-subdev0 0
INFO   : [DEWARP_HW] dwe type /dev/v4l-subdev1 1
INFO   : [DEWARP_HW] dwe type /dev/v4l-subdev2 2
INFO   : [DEWARP_HW] dwe type /dev/v4l-subdev3 3
INFO   : [MediaPipeline] V4l2Control Creat
INFO   : [V4l2Event] Crop: left=0,top=0,width=1920,height=1080
INFO   : [NativeSensor] jsonRequest 0xa01e
INFO   : [NativeSensor] jsonRequest 0x8100b
INFO   : [V4l2Event] Compose: left=0,top=0,width=1920,height=1080
INFO   : [NativeSensor] jsonRequest 0xa01f
INFO   : [V4l2Event] get json request: {"id":"s.fps","fps":60}
INFO   : [NativeSensor] jsonRequest 0x1801a
INFO   : [V4l2Event] send json response: {
        "result" : 0
}
INFO   : [V4l2Event] Compose: left=0,top=0,width=1920,height=1080
INFO   : [NativeSensor] jsonRequest 0xa01f
INFO   : [MediaPipeline] MEDIA_EVENT_STREAM_OPEN
INFO   : [MediaPipeline] stream0 connect NativeSensor:0 ---> NativeDewarp:0
INFO   : [MediaPipeline] stream0 connect NativeDewarp:0 ---> V4l2Control:0
INFO   : [MediaPipeline] MEDIA_EVENT_STREAM_SET_FMT
INFO   : [MediaPipeline] set format:0   res: 1920 1080 1
INFO   : [NativeSensor] setFormat isp crop: bounds 1920X1080 left 0 top 0 size 1920X1080
INFO   : [NativeSensor] setFormat isp scale: bounds 1920X1080 left 0 top 0 size 1920X1080
INFO   : [MediaBufferQueue] create buffer queue 1920 1080 1 4
DEBUG  : [MediaBuffer] alloc buffer 0xeec00000 0x003f5000
DEBUG  : [MediaBuffer] alloc buffer 0xef000000 0x003f5000
DEBUG  : [MediaBuffer] alloc buffer 0xef400000 0x003f5000
DEBUG  : [MediaBuffer] alloc buffer 0xef800000 0x003f5000
INFO   : [NativeSensor] push NativeDewarp sink buffer 0xeec00000 into isp
INFO   : [NativeSensor] push NativeDewarp sink buffer 0xef000000 into isp
INFO   : [NativeSensor] push NativeDewarp sink buffer 0xef400000 into isp
INFO   : [NativeSensor] push NativeDewarp sink buffer 0xef800000 into isp
AAAAAAAAAAAAAAA 10238976
going into S_EXP ioctl 10238976
INFO   : [NativeSensor] setFormat 1 1920 1080,  type 1, port: 0
INFO   : [NativeDewarp] setFormat 1 1920 1080,  type 0, port: 0
INFO   : [NativeDewarp] setFormat dewarp input: 1920x1080 YUV422I
INFO   : [NativeDewarp] setFormat pipeline crop size  left 0 top 0 size 1920X1080 conversion to dewarp crop: left 0 top 0 size 1920X1080
INFO   : [NativeDewarp] setFormat 1 1920 1080,  type 1, port: 0
INFO   : [NativeDewarp] setFormat dewarp output: 1920x1080 YUV422I
INFO   : [MediaPipeline] MEDIA_EVENT_STREAM_START
INFO   : [DewarpDriver] start 1920 1080 121 69, stride: 3840 3840
INFO   : [DEWARP_HW] enter setParams
INFO   : [NativeSensor] enter start
^CINFO   : [MediaPipeline] NativeSensor stop
INFO   : [NativeSensor] enter stop
INFO   : [MediaPipeline] NativeDewarp stop
INFO   : [NativeDewarp] enter stop
DEBUG  : [MediaBuffer] free buffer 0xeec00000 0x003f5000
DEBUG  : [MediaBuffer] free buffer 0xef000000 0x003f5000
DEBUG  : [MediaBuffer] free buffer 0xef400000 0x003f5000
DEBUG  : [MediaBuffer] free buffer 0xef800000 0x003f5000
INFO   : [NativeDewarp] leave stop
INFO   : [MediaPipeline] V4l2Control stop
INFO   : [MediaPipeline]  NativeDewarp close
DEBUG  : [DEWARP_HW] enter destroy
INFO   : [MediaPipeline]  NativeSensor close
INFO   : [MediaPipeline]  V4l2Control close
root@meercam-worker-test:/opt/imx8-isp/bin #

In dmesg we see

[ 1024.042229] Enable stream

When starting the camera so confident the new driver is loading and calling the appropriate registry settings.

Hi Bruno,
That’s good news in a way… Interesting it works out of the box, we must be missing something fundamental.

We’re using kirkstone.

Upgrading the driver hasn’t fixed anything still getting nothing appear on the clock.

I am pretty sure we’ve got the software all installed properly now just seems we’re missing something else fundamental.

I’d be very grateful if you could please share your DTS file for the two camera mode just in-case I’ve missed something there.

Our start_isp.sh call correctly see’s that we’ve got two cameras and calls run.sh with the correct arguments too, which I think also implies we’ve got the DTS correct at least.

Hello @alan01252,

I am using kirkstone as well, so that is good news.
I got it working with two cameras with minimal changes to the existing layer.

You can see the commit here: Add Device Tree Overlay for Second iMX662 Camera · brunoaamello/meta-toradex-framos@6110bcb · GitHub

With the above changes, the only changes needed to get both cameras working are:

  • Enable the new overlay by modifying /boot/overlays.txt
  • Disable the HDMI to DSI overlay by modifying /boot/overlays.txt

You could do both of these in your layer.conf as well.

Also note that the new overlay expects a specific connection when using the Verdin iMX8MP mezzanine board, for your hardware you may need a different I2C port or GPIOs. When using the Mezzanine:

  • JP3: 2-3
  • JP4: 2-3
  • JP5: 1-2

The following pipeline should also do the job to show both streams in different windows for testing:

gst-launch-1.0 -v v4l2src device=/dev/video2 ! video/x-raw,width=1920,height=1080 ! imxvideoconvert_g2d ! video/x-raw,width=960,height=540 ! ximagesink sync=false v4l2src device=/dev/video3 ! video/x-raw,width=1920,height=1080 ! imxvideoconvert_g2d ! video/x-raw,width=960,height=540 ! ximagesink sync=false

I looked a bit more into the code and it handles this case well without changes, so you can disregard my previous comment on this.


I also do not recommend using the latest driver from Framos, as it is for BSP 7 (scarthgap).

Best Regards,
Bruno

Thanks so much @bruno.tx really appreciated…

At this point I am pretty much convinced either that adapter board is doing some extra magic that framos have not informed us about, or that we’ve got some other wiring issue on our custom board :frowning:

We’ve ordered some of the framos adapters now so hopefully we can start to figure out what might be missing there :frowning:

Hello @alan01252,

I think this is a good way forward.
Maybe it is indeed a hardware difference.

In the meantime, double-checking the resets and I2C buses which you are using would be good just to be sure this cannot be solved with small changes in the device tree.

Best Regards,
Bruno

Oh my goodness me, we’ve just discovered what it is… We had a fault in the ribbon cable.

Thanks so much for your help clarifying the software worked @bruno.tx that made us evaluate every little thing again…

You’ve been a star :slight_smile:

Hello @alan01252,

That is great to hear!
These ribbon cables are indeed a bit fragile, it was a good idea to try to replace it.

Best Regards,
Bruno
