Colibri iMX7 Dual JTAG pin numbers for pogo pin connector?

sachin07 · December 17, 2019, 9:43am

I am not getting proper pin numbers for JTAG pogo pin connector which is avilable back side of colibri module.??
i am unable to interface JTAG ??

abhijeet · December 17, 2019, 9:53am

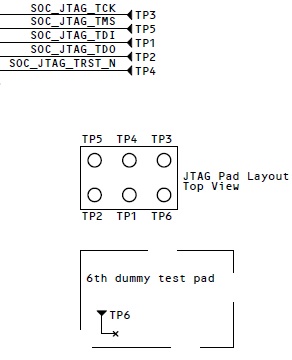

Refer to the schematic of an eval board to get the connection information.

alex.tx · December 17, 2019, 10:56pm

sachin07 · December 19, 2019, 5:20am

Thank you @ abhijeet for helping me to solve JTAG connections problem.

sachin07 · December 19, 2019, 5:25am

Thank you @alex.tx for helping me to solve JTAG connections problem.

jaski.tx · December 19, 2019, 1:59pm

You are welcome. Thanks for the feedback.

Best regards,
Jaski
