Cannot connect Colibri iMX8X DSI to HDMI Adapter with Colibri iMX8QXP 2GB WB IT

Technical Support
,
1

I try to connect the hdmi to Colibri iMX8QXP and it was short circuit.

I connected the Colibri iMX8QXP with the Colibri DSI to HDMI adapter and the devices was short circuit (with smoke !).

The devices are as follows.

  • Colibri iMX8X DSI to HDMI Adapter V1.1A
  • Colibri iMX8QXP 2GB WB IT V1.0D
  • Aster V1.1B
  • Display resistive touch display 7" parrallel V1.0B

I don’t know what happen because after checking with the datasheet the pins are matched.

Does anyone know how to fix this issue?

2

Could you please provide detailed pictures of your setup?

3

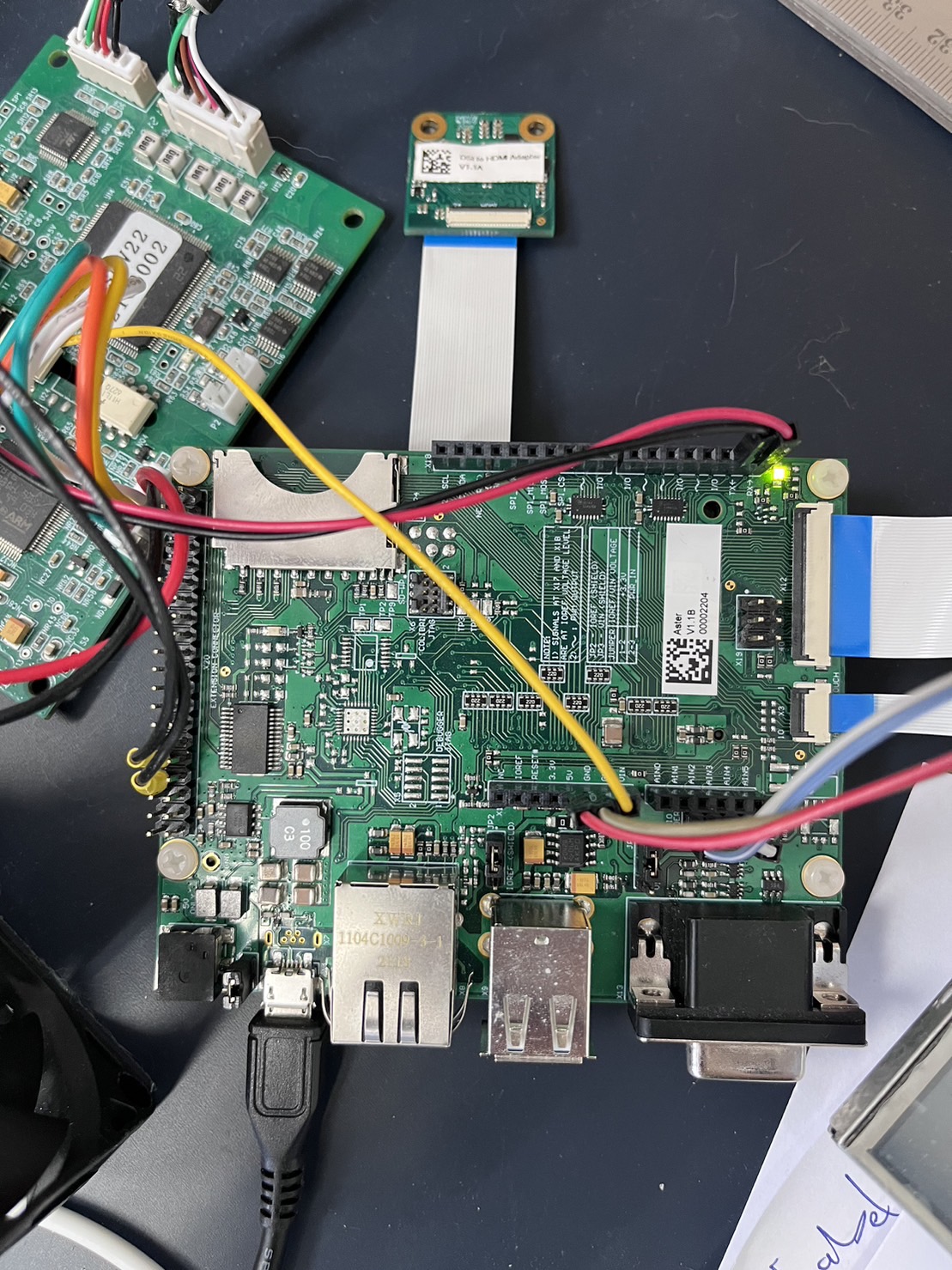

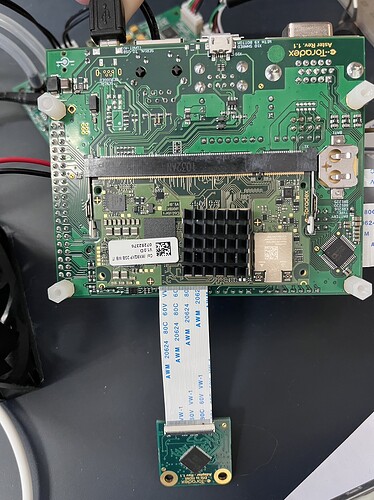

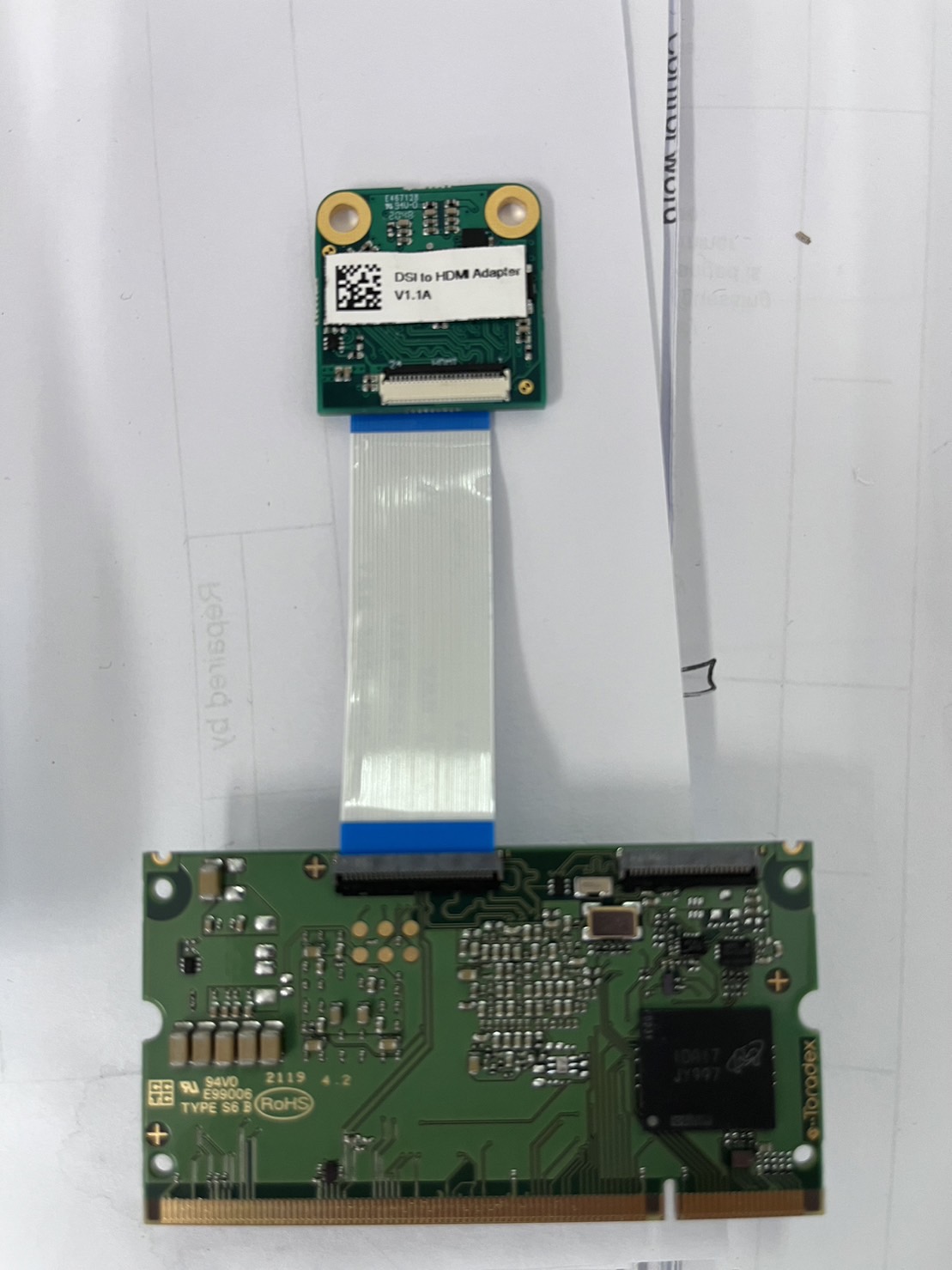

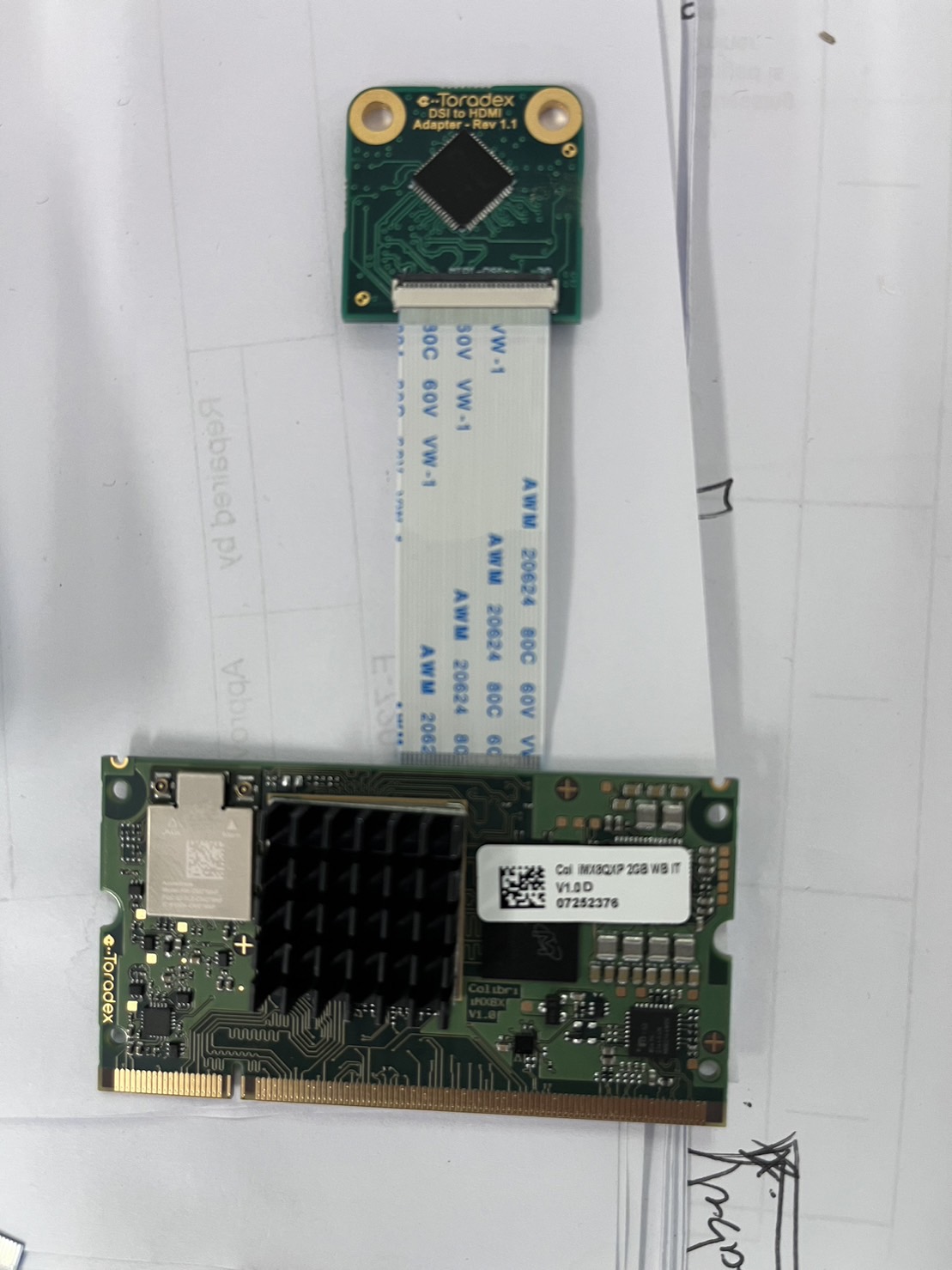

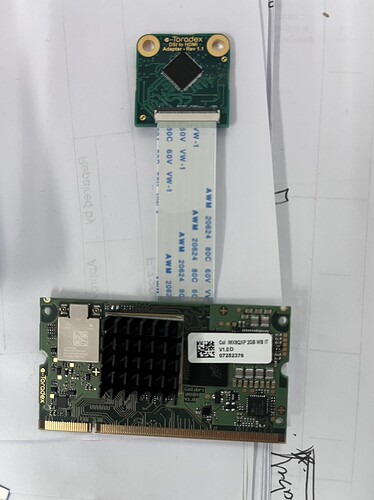

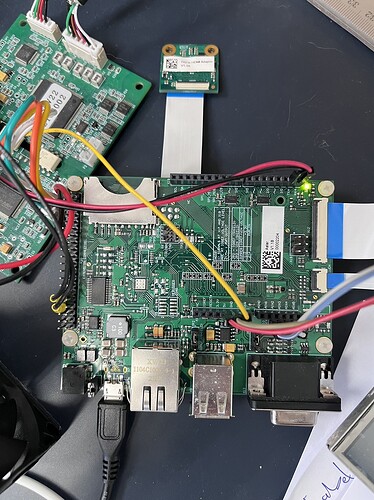

Please review my set up.

The Aster Carrier is powered by 5V USB from Laptop

Aster Carrier Board<=> Colibri iMX8QXP <=> Colibri DSI to HDMI adapter
Aster Carrier Board <=> Display resistive touch display 7"

S__5996560
S__59965601109×1479 483 KB

S__5996562
S__59965621109×1479 424 KB

S__5996570
S__59965701109×1479 230 KB

S__5996572
S__59965721109×1479 217 KB

4

Connection of DSI to HDMI Adapter looks OK and shouldn’t cause any smoke. Most likely you get smoke from another board connected to your Aster board.

From other hand - how are you going to connect HDMI monitor? Aster board has no matching FFC . connectors. You will need either to use another carrier board like Iris and Colibri Evaluation board or use the Colibri HDMI Adapter.

5

@alex.tx Thank you your reply. I will checking other board again.

I want to test the HDMI monitor with Colibri iMX8 so I connected with the DSI to HDMI adapter board and just got the problem.

6

The DSI to HDMI adapter has no HDMI connector. So how were you going to connect the HDMI monitor?

7

I connected to my own design HDMI board where I matched the pinout from the DSI to HDMI adapter.

But the problem I mentioned above was before I connected the DSI to HDMI adapter to the other device.

8

hi @noppasit3,

Can you please confirm if you still facing issue?

Best Regards
Ritesh Kumar
