I currently am able to send and recieve data from Core M4_0, however am unable to send or recieve data from the Core M4_1. This is before i even set up the linux side. I have altered the Device tree to prevent linux taking control of the M4 uart’s, but require use of both core’s tighly coupled uart.
I have done the following:
on the eval board:
Removed:
- X6-40 (MXM3_110)
- X6-35 (MXM3_120)
- X6-34 (MXM3_122)
- X6-33 (MXM3_124)
Connected:

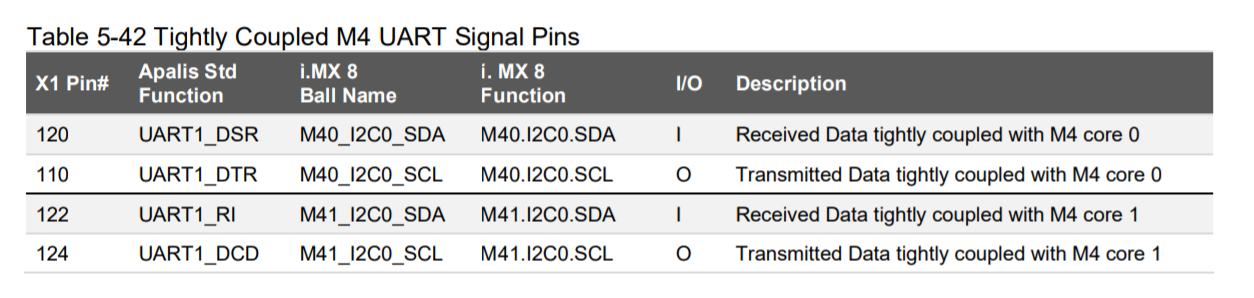

- X5-40 (MXM3_110) → TLL USB1 RX
- X5-35 (MXM3_120) → TLL USB1 TX
- X5-34 (MXM3_122) → TLL USB2 RX
- X5-35 (MXM3_124) → TLL USB2 TX
and in board.h
#if defined(MIMX8QM_CM4_CORE0)
#define BOARD_DEBUG_UART_BASEADDR (uint32_t) CM4_0__LPUART
#define BOARD_DEBUG_UART_INSTANCE 0U
#define BOARD_DEBUG_UART_SC_RSRC SC_R_M4_0_UART
#define BOARD_DEBUG_UART_CLKSRC kCLOCK_M4_0_Lpuart
#define BOARD_UART_IRQ M4_0_LPUART_IRQn
#define BOARD_UART_IRQ_HANDLER M4_0_LPUART_IRQHandler
#elif defined(MIMX8QM_CM4_CORE1)
#define BOARD_DEBUG_UART_BASEADDR (uint32_t) CM4_1__LPUART
#define BOARD_DEBUG_UART_INSTANCE 1U
#define BOARD_DEBUG_UART_SC_RSRC SC_R_M4_1_UART
#define BOARD_DEBUG_UART_CLKSRC kCLOCK_M4_1_Lpuart
#define BOARD_UART_IRQ M4_1_LPUART_IRQn
#define BOARD_UART_IRQ_HANDLER M4_1_LPUART_IRQHandler
#else
#error "No valid BOARD_DEBUG_UART_BASEADDR defined."
#endif
Is there a step i have missed to use the both tightly coupled uarts on the M4Cores ?
N.B.
i have tried using example code and am able to use DMA_Uart2, however we required use of tightly coupled uarts.
UPDATE:
i have updated this into the pin_mux.c
void BOARD_InitPins(sc_ipc_t ipc) /*!< Function assigned for the core: Cortex-M4F[cm4_core0] */
{
sc_err_t err = SC_ERR_NONE;
#if defined(MIMX8QM_CM4_CORE0)
err = sc_pad_set_all(ipc, SC_P_M40_I2C0_SCL, 1U, SC_PAD_CONFIG_NORMAL, SC_PAD_ISO_OFF, 0x0 ,SC_PAD_WAKEUP_OFF);/* IOMUXD_M40_I2C0_SCL register modification value */
if (SC_ERR_NONE != err)
{
assert(false);
}
err = sc_pad_set_all(ipc, SC_P_M40_I2C0_SCL, 1U, SC_PAD_CONFIG_NORMAL, SC_PAD_ISO_OFF, 0x0 ,SC_PAD_WAKEUP_OFF);/* IOMUXD_M40_I2C0_SDA register modification value */
if (SC_ERR_NONE != err)
{
assert(false);
}
#elif defined(MIMX8QM_CM4_CORE1)
err = sc_pad_set_all(ipc, SC_P_M41_I2C0_SCL, 1U, SC_PAD_CONFIG_NORMAL, SC_PAD_ISO_OFF, 0x0 ,SC_PAD_WAKEUP_OFF);/* IOMUXD_M40_I2C0_SCL register modification value */
if (SC_ERR_NONE != err)
{
assert(false);
}
err = sc_pad_set_all(ipc, SC_P_M41_I2C0_SCL, 1U, SC_PAD_CONFIG_NORMAL, SC_PAD_ISO_OFF, 0x0 ,SC_PAD_WAKEUP_OFF);/* IOMUXD_M40_I2C0_SDA register modification value */
if (SC_ERR_NONE != err)
{
assert(false);
}
#endif
}
found the solution:
board.h is correct. however pin_mux.c and pin_mux.h are incorrect.
here is the pinmux solution:
pin_mux.c
void BOARD_InitPins(sc_ipc_t ipc) /*!< Function assigned for the core: Cortex-M4F[cm4_core_X] */
{
sc_err_t err = SC_ERR_NONE;
//mux -> alt mode?
err = sc_pad_set_all(ipc, BOARD_INITPINS_RX, 1U, SC_PAD_CONFIG_NORMAL, SC_PAD_ISO_OFF, 0x0 ,SC_PAD_WAKEUP_OFF);/* IOMUXD_M40_I2C0_SCL register modification value */
if (SC_ERR_NONE != err)
{
assert(false);
}
err = sc_pad_set_all(ipc, BOARD_INITPINS_TX, 1U, SC_PAD_CONFIG_NORMAL, SC_PAD_ISO_OFF, 0x0 ,SC_PAD_WAKEUP_OFF);/* IOMUXD_M40_I2C0_SDA register modification value */
if (SC_ERR_NONE != err)
{
assert(false);
}
}
pin_mux.h
/*
* Copyright 2017-2020 NXP
*
* SPDX-License-Identifier: BSD-3-Clause
*/
#ifndef _PIN_MUX_H_
#define _PIN_MUX_H_
#include "board.h"
/***********************************************************************************************************************
* Definitions
**********************************************************************************************************************/
#if defined(MIMX8QM_CM4_CORE0)
#define BOARD_INITPINS_TX SC_P_M40_I2C0_SDA /*!< Pin function id */
#define BOARD_INITPINS_RX SC_P_M40_I2C0_SCL /*!< Pin function id */
#elif defined(MIMX8QM_CM4_CORE1)
#define BOARD_INITPINS_TX SC_P_M41_I2C0_SDA /*!< Pin function id */
#define BOARD_INITPINS_RX SC_P_M41_I2C0_SCL /*!< Pin function id */
#else
#error pin config not set
#endif
/*!
* @addtogroup pin_mux
* @{
*/
/***********************************************************************************************************************
* API
**********************************************************************************************************************/
#if defined(__cplusplus)
extern "C" {
#endif
/*!
* @brief Calls initialization functions.
*
*/
void BOARD_InitBootPins(void);
/*!
* @brief Configures pin routing and optionally pin electrical features.
* @param ipc scfw ipchandle.
*
*/
void BOARD_InitPins(sc_ipc_t ipc); /*!< Function assigned for the core: Cortex-M4F[cm4_core0] */
#if defined(__cplusplus)
}
#endif
/*!
* @}
*/
#endif /* _PIN_MUX_H_ */
/***********************************************************************************************************************
* EOF
**********************************************************************************************************************/
