Apalis iMX8: CPU test points to measure current

Technical Support
, ,
1

Hi team,

A customer is interested in measuring the current from the Apalis iMX8 CPU. Could you show us where could they attach a probe to measure the voltage coming from the SoC? Ideally a drawing would be best.

Thanks!
Alvaro.

2

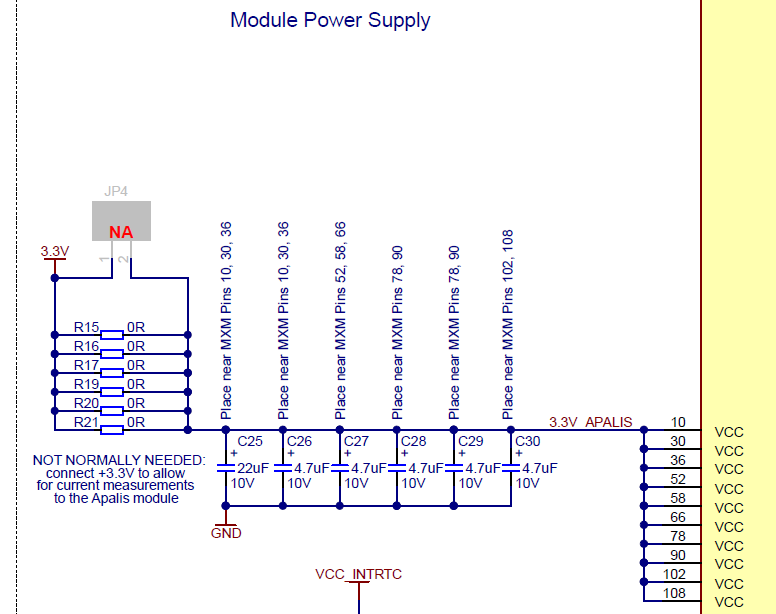

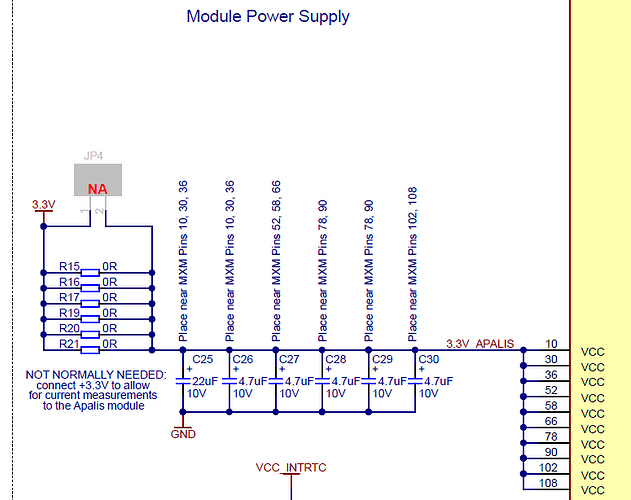

Apalis iMX8 has no power source so I believe it’s not possible to “measure the voltage coming from the SoC”. If they want to measure current coming to module they can use an Apalis Carrier board JP4 connector.

image776×614 36.6 KB
