Additional COM port

Technical Support
, , , ,
1

Hello,

We have many Iris Carrier Board V2.0 with the Colibri iMX6 DL512 and Windows CE 7 in one of our products.
Currently we are using 3 RS-232 from the Iris Carrier Board to interface other devices. We know that the Colibri supports up to 5 UART, so we’ve being trying to understand if its possible to use one of the 2 UART remainings from the Colibri to “create” a new RS-232 com port to use as a 4th COM port in our product.

In your website I have found this: WinCE Serial Ports | Toradex Developer Center, where I can add a registry key to enable COM4 or COM5.

Is there any information on how should we interface the remaining UARTs to use as a COM port? I mean, Iris Carrier board only interface 3 of them and “convert” to RS-232 level to be used.

2

Hi, I’m the Toradex AI Assistant.

I might make mistakes. Our support team will step in if needed. If I answered your question, please tick the “Solution” checkbox. For follow-up questions to me, please use @ToradexAI in your post.

Did you like my answer? :+1: :-1:

Hello!

You are correct—while the Colibri iMX6 module provides up to 5 UART interfaces (COM1–COM5), the Iris Carrier Board V2.0 only includes RS-232 level transceivers for 3 of them. However, you can indeed access the additional UARTs and use them as extra COM ports; you just need to handle the RS-232 level conversion externally.

How to Access Additional UARTs (COM4/COM5):

  1. Accessing UART Signals:

    • The TTL-level signals (default 3.3V) for the additional UARTs are available on the Iris Carrier Board through the Extension Connector (X16).
    • For example, for COM4 (UART D), use:

  2. Level Conversion to RS-232:

    • The signals at these pins are at TTL voltage levels, not RS-232.
    • You need an external RS-232 transceiver (such as a MAX232 IC) to convert these to RS-232 voltage levels.
    • You can use a small breakout board or design a custom PCB for this purpose.

  3. Enabling the UART in Windows CE:

    • The registry keys you’ve found here are correct for enabling COM4 or COM5.
    • Example registry settings for COM4:
      [HKEY_LOCAL_MACHINE\Drivers\BuiltIn\COM4]
    "DeviceArrayIndex"=dword:00000003
    "IoLen"=dword:000000d4
    "Prefix"="COM"
    "Dll"="csp_serial.dll"
    "Index"=dword:00000004
    "Order"=dword:00000002

[HKEY_LOCAL_MACHINE\Drivers\BuiltIn\COM4\Unimodem]
    "Tsp"="Unimodem.dll"
    "DeviceType"=dword:00000000
    "FriendlyName"="COM4 UNIMODEM"
    "DevConfig"=hex:10,00,00,00,05,00,00,00,10,01,00,00,00,4b,00,00,00,00,08,00,00,\
     00,00,00,00

[HKEY_LOCAL_MACHINE\Drivers\BuiltIn\COM4\Pinout_Default]
    "colibripin_167"="altfn=3"
    "colibripin_165"="altfn=3"
    • This will make COM4 available in your Windows CE image and accessible to your software.

Summary of steps:

  • Physically access the UART signals from the Iris X16 header or SODIMM pins.
  • Interface them with an RS-232 transceiver circuit.
  • Enable the UART port via registry settings as documented.

For more information, please refer to:

Let me know if you need guidance on any part of the configuration process!

Best regards,
Toradex AI Assistant.

3

Unfortunately, the Colibri iMX6 X1 pins (165, 167, 169, and 171), which are required for UART4 and UART5 interfaces, are not routed to any connector on the Iris carrier board.

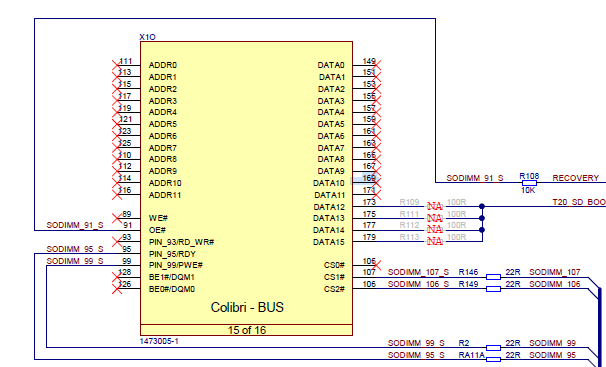

image705×296 34.1 KB

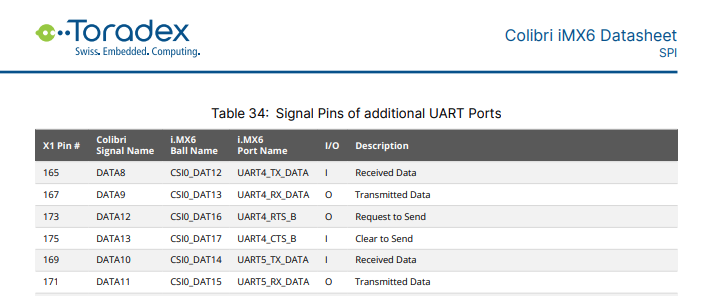

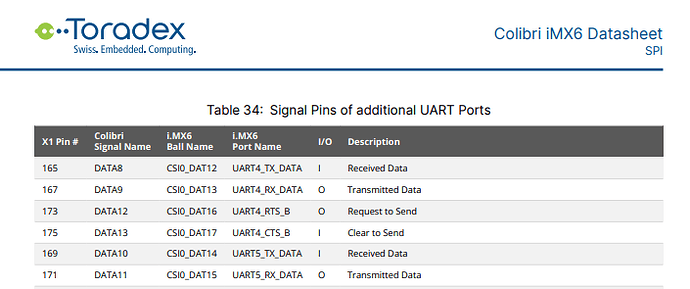

image606×367 21.6 KB

4

Hello @alex.tx. Since those pins are not available on Iris carrier board, what are the options that I have to have COM4 available for my product?

5

You can either build your own custom carrier board or use the Colibri Evaluation Board, which exposes all pins from the SoM’s edge connector.
