3D Model for Mallow hardware

Technical Support
1

We are now building a case for a Toradex unit based on Verdin and Mallow boards and need to grab the 3D model of those boards.

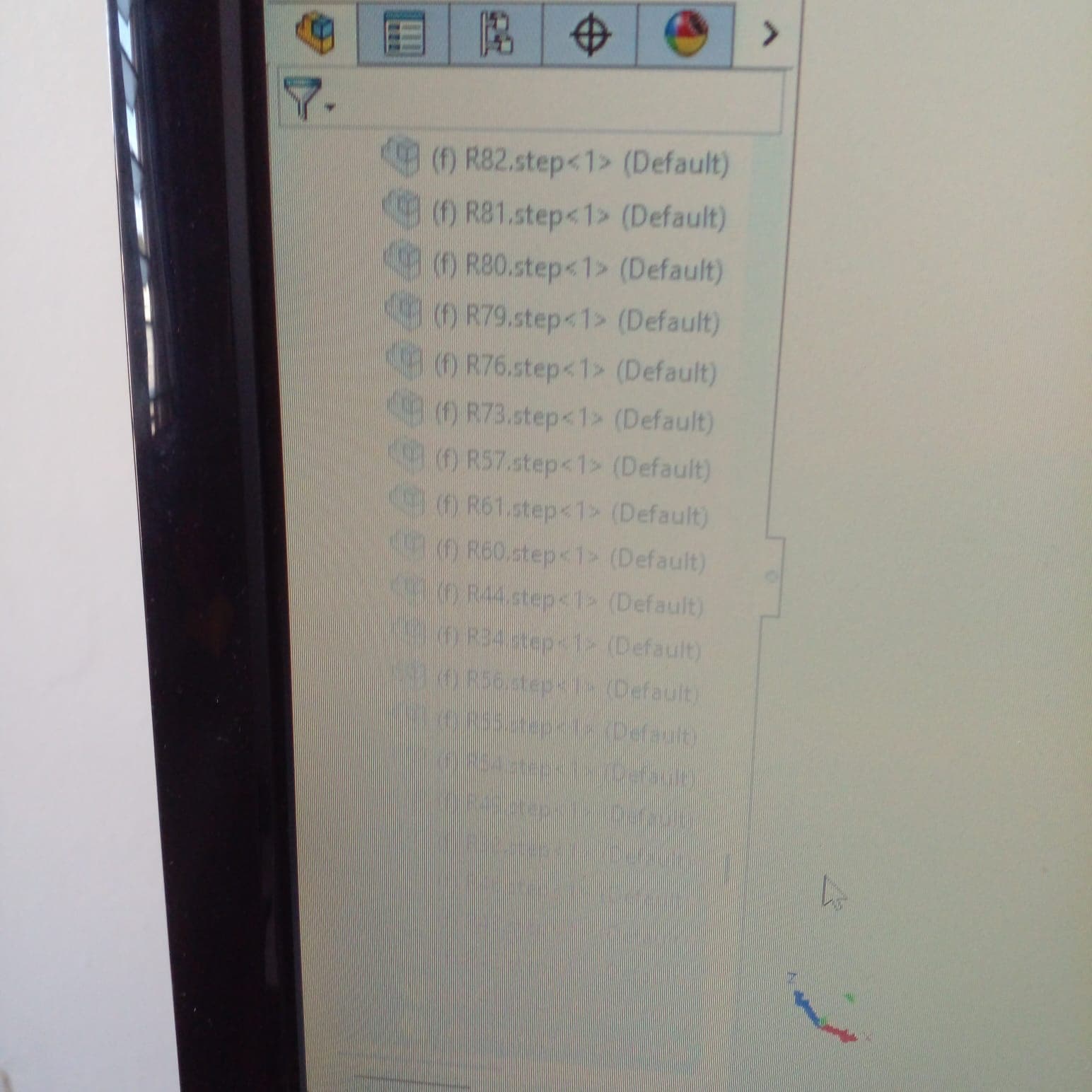

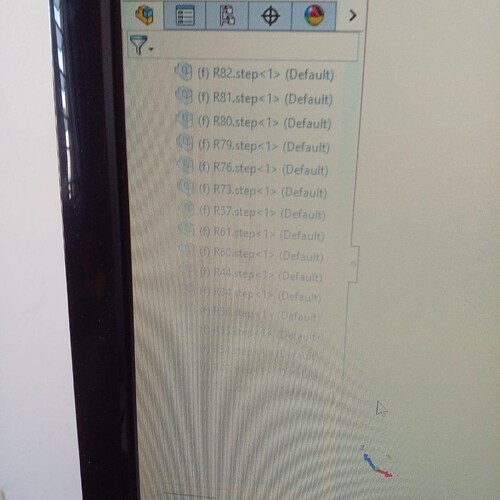

I’ve tried the STEP files available in the website, but it seem to have the componentes turned off and cannot be seen on SolidWorks:

File: https://docs.toradex.com/113766-mallow-v1.1-3d-step-model.zip

image1544×1544 162 KB

How can I get the STEP files with components unlocked/opened?

Thanks,

2

Hi @renatom !

Is it possible for you to see which are the components that are turned off?

We expect that this file is correct with every component available. So my first suspicion is that these components are not necessarily mounted on the Mallow board.

Best regards,
Daniel Morais
